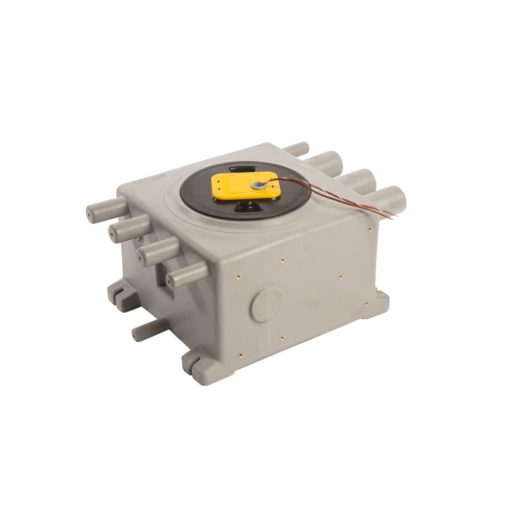

The Whale 8 litre Grey Waste Tank comes with the following features:
- Integrated sensors for automatic pump control.
- Unique ‘triple seal’ lid isolates electronics from the harsh grey waste environment for advanced durability.
- Reliably handles typical shower & galley sink waste up to 90°C even in complex multiple outlet systems.
- Solid state switches – no moving parts prone to blockages.
- Unique ‘Triple seal’ protection prevents water ingress – no leak paths to electronics.
- Splash-proof lid.
- Protected fully potted circuit board.
Ideal for use with Whale Gulper pumps.
Easy flexible installation:
- Easy wiring – connect any 12 or 24V d.c. pump system (up to 20A) with no relay required.
- Fit pumps in protected locations:- choose top or side of tank mounting, or locate pump high and dry away from bedroom areas to minimize noise disruption.
- Low maintenance.
- Glass filled polypropylene sensor housing helps reduce debris build-up, and lid provides access to wipe clean sensors.
Inlet Hose Connections:
2 x 19mm (3/4″)
3 x 25mm (1″)
3 x 38mm (1 1/2″)
Outlet Hose Connections:
1 x 19mm (3/4″)
1 x 25mm (1″)
Dimensions:
350mm Long x 260mm Wide x 180mm High
