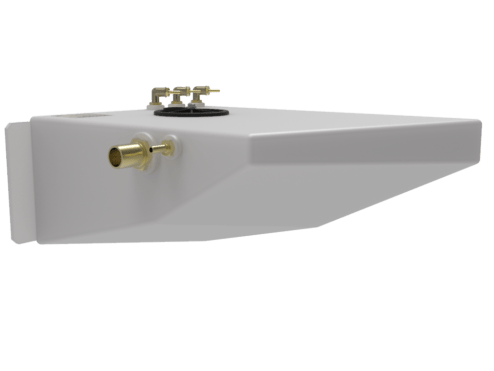

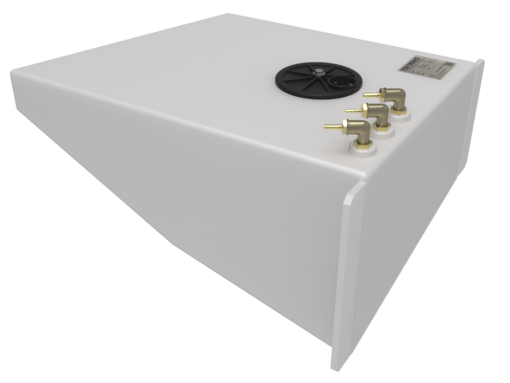

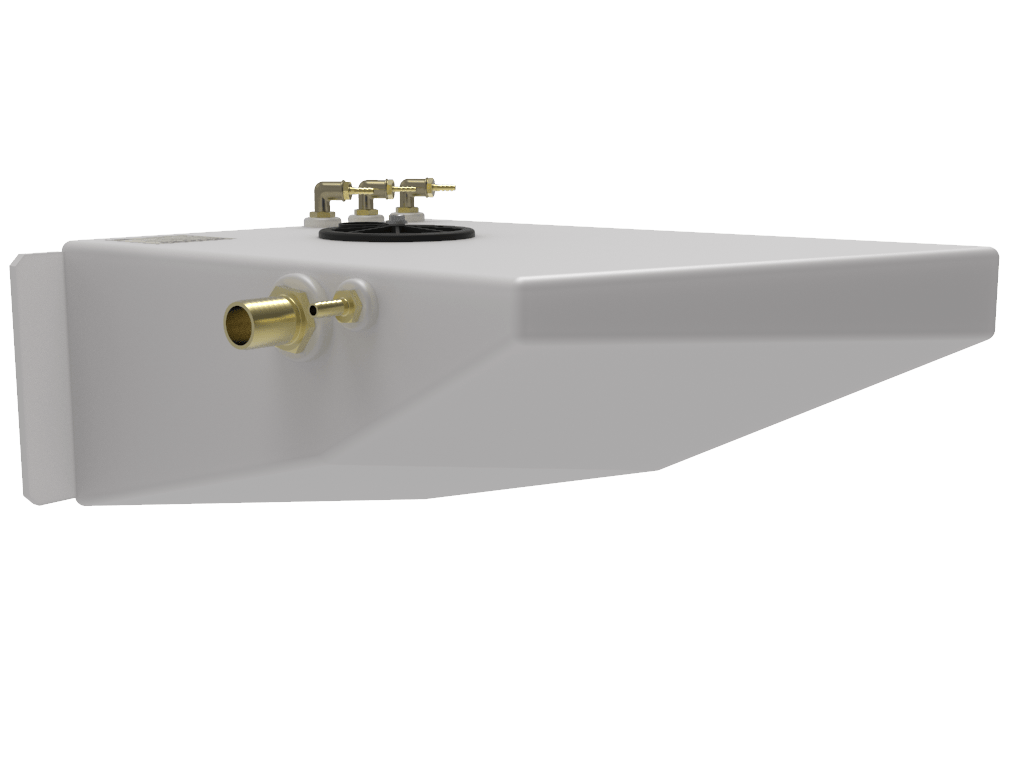

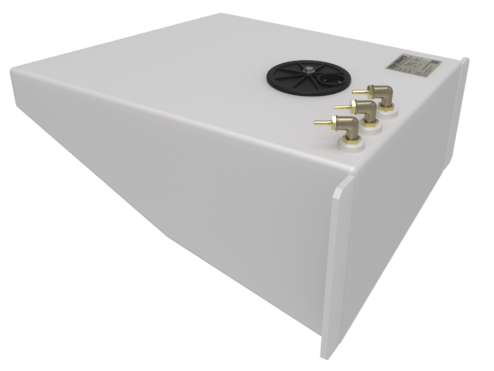

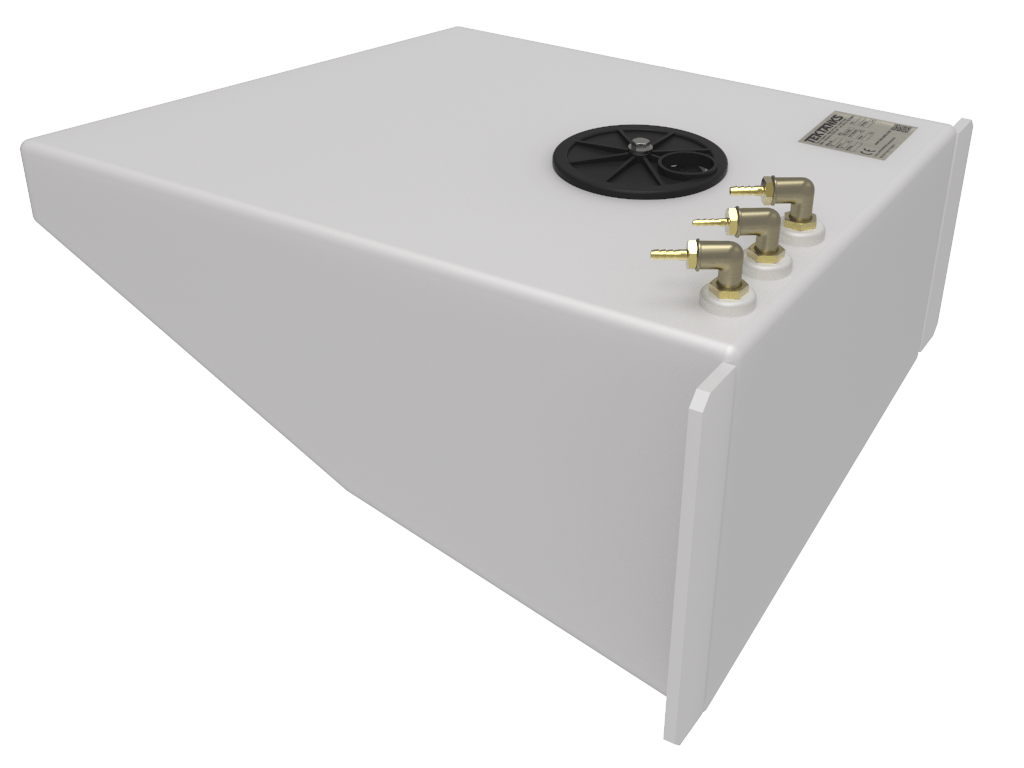

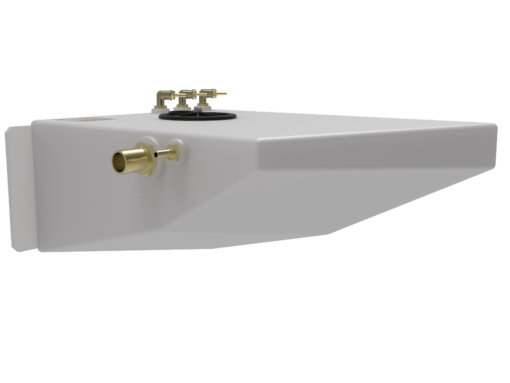

Bavaria 320 Diesel Tank

Replacement Plastic Diesel for Bavaria 320 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 750mm
Width: 490mm
Height: 345mm

Fittings:

1 x 1/4″ BSP – 6mm Elbow Brass Hosetail
2 x 5/16″ BSP- 8mm Elbow Brass Hosetail
1 x 1/2″ BSP – 13mm Straight Brass Hosetail
1 x 1 1/2″ BSP – 38mm Straight Brass Hosetail
1 x FLB-1 – Standard Inspection Hatch
2 x Copper Dip Pipe
2 x Undrilled Fixing Flanges

Capacity: 52 litres

Position in Boat: Starboard Aft

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
