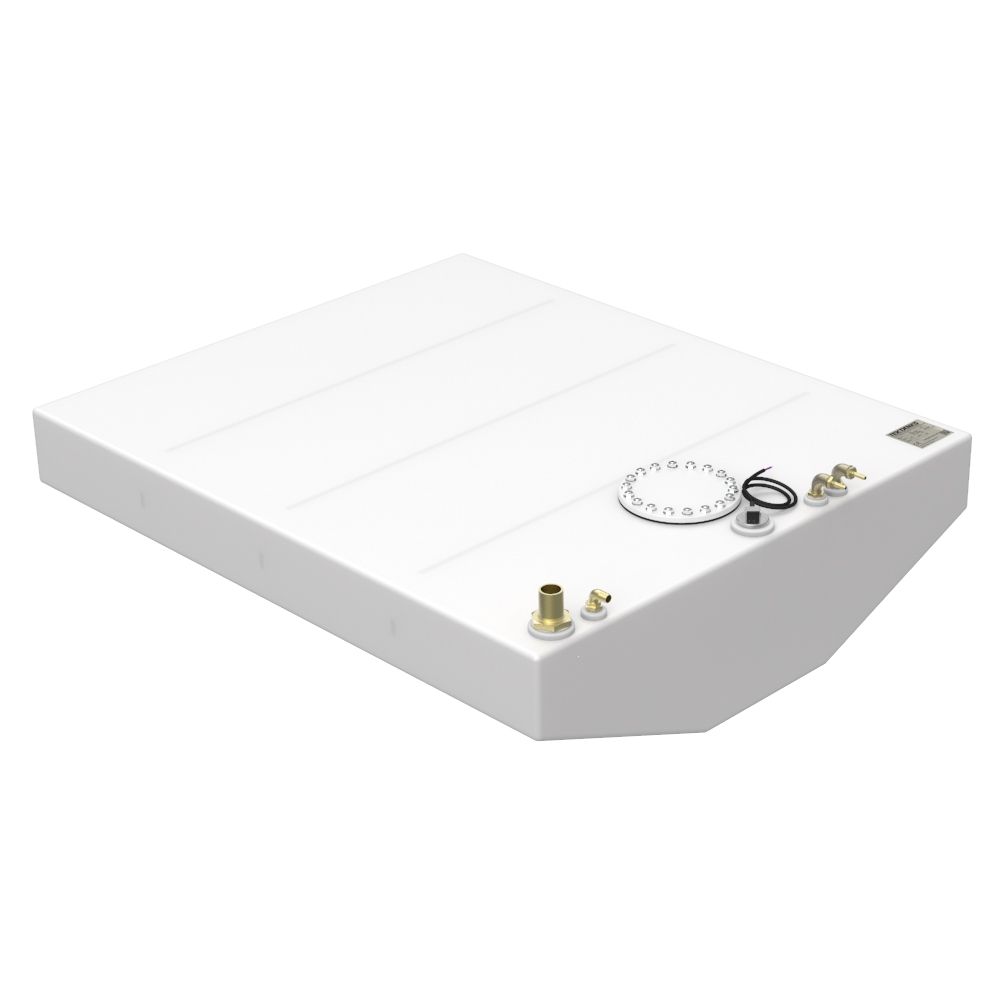

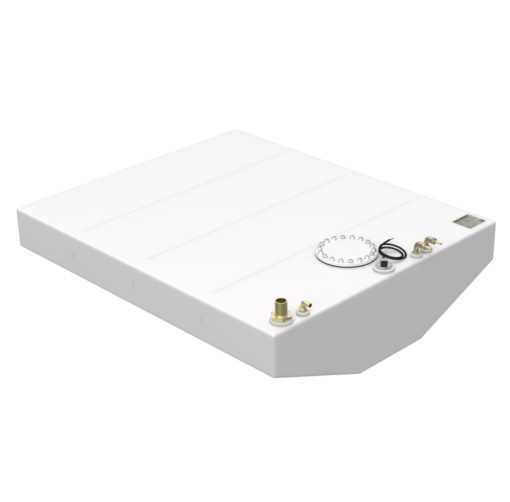

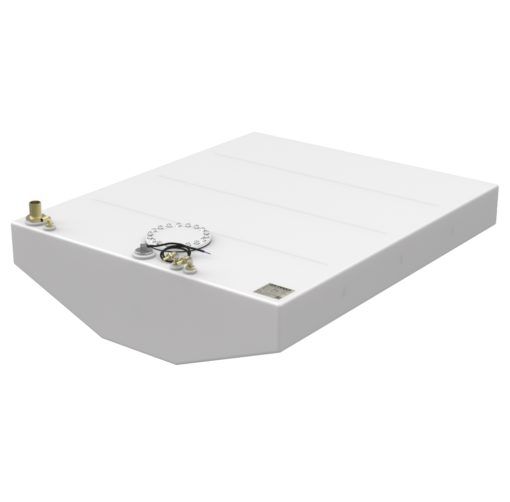

Bayliner 2655 Diesel Tank

Bayliner 2655 Diesel Tank

Material: 10mm Natural High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1270mm
Width: 1060mm
Height: 300mm

Fittings:

1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
2 x 5/16″ BSP – 8mm Brass Elbow Hosetail
1 x Dip Pipe
1 x 5/8″ BSP – 16mm Brass Elbow Hosetail
1 x Tek-Tanks Nuts & Bolts Inspection Hatch (Ø 200mm)
1 x 1 1/4″ BSP Socket
1 x Wema Fuel Level Indicator
1 x IPFR Wema Fuel Gauge (not shown on the drawing)

Capacity: 286 litres

Position in Boat: Unknown

Drawings are available at a cost of £75.00 VAT This cost is totally refundable if an order is placed for this tank.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
