Bayliner S2850 Diesel Tank

Bayliner S2850 Diesel Tank

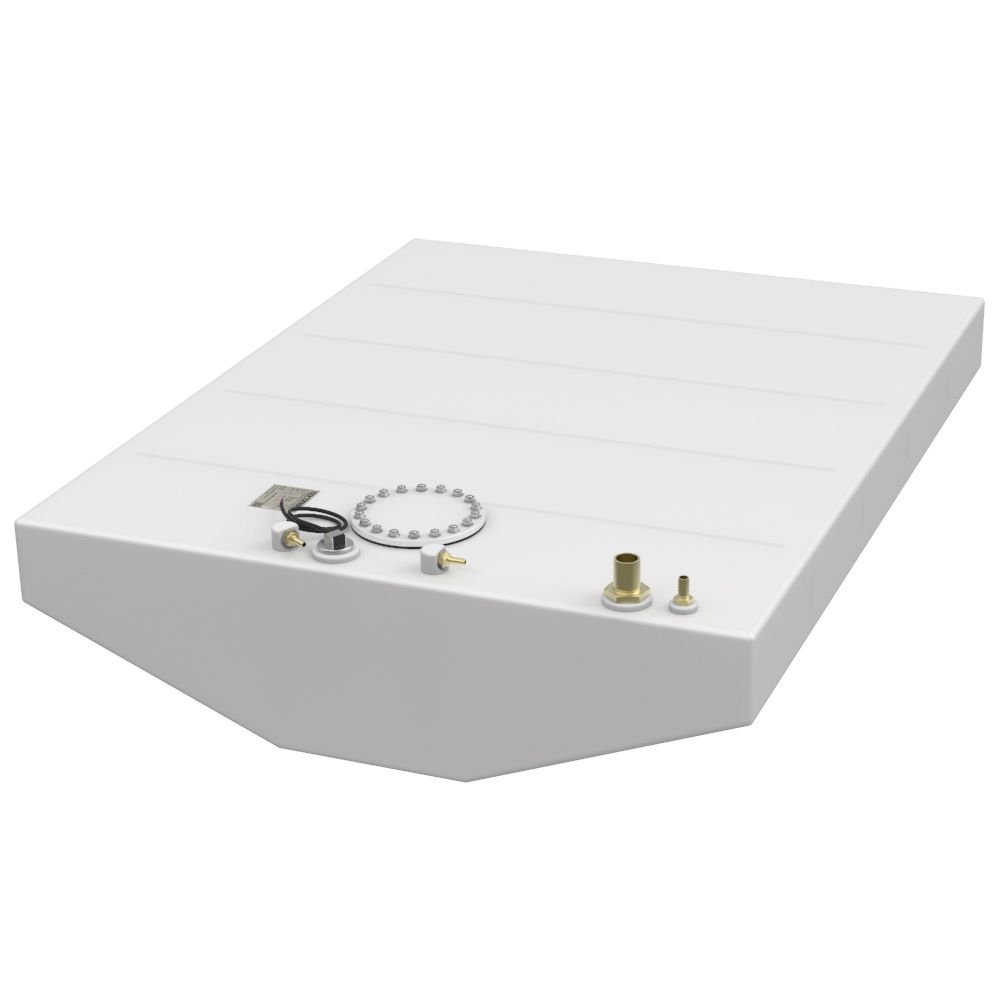

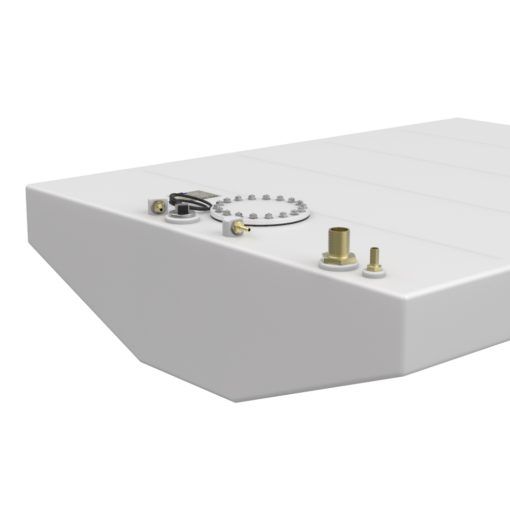

Replacement Diesel Tank for Bayliner S2850. Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1490mm
Width: 1150mm
Height: 310mm

Fittings:

1 x 1/2 2″ BSP – 38mm Brass Straight Hosetail
1 x 1″ BSP -25mm Valved Brass Elbow Hosetail
1 x 3/4″ BSP – 19mm Straight Brass Hosetail
1x 3/8″ BSP – 10mm Valved  Brass Elbow Hosetail
1 x Copper Dip Pipe
1 x 1 1/4″ BSP Female Socket
1 x 270mm Nuts and Bolts Tek-Tanks Custom Inspection Hatch
2 x Flanges (supplied undrilled)

Capacity: 369 litres

Position in Boat: Under Aft Cabin Bunk

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
