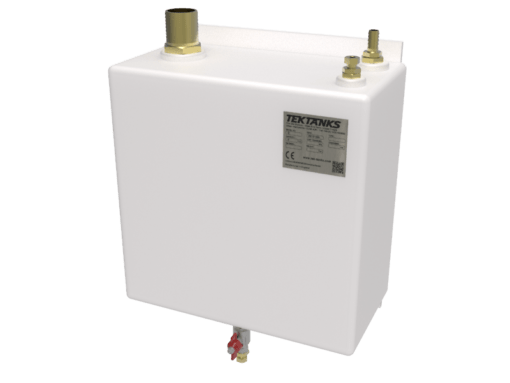

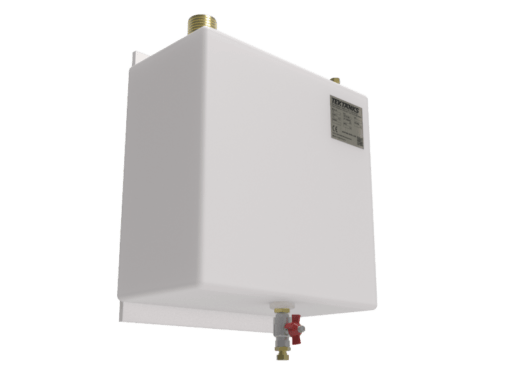

Beneteau F285 Diesel Tank

Replacement Diesel Tank for Beneteau F285 Sailing Yachts.

Rotationally Moulded from 10mm Thick Medium Density Polyethylene.

Overall dimensions (without fittings):

Length: 400mm
Width: 210mm
Height: 400mm

Fittings:

1 x 2″ BSP – 50mm Straight Brass Hosetail
1 x 5/8″ BSP – 16mm Straight Brass Hosetail
1 x 5/16″ BSP – 8mm Straight Brass Hosetail
1 x 1/4″ BSP Straight Compression Stud Valved
2 x Fixing Flange (supplied undrilled)

Capacity: 28 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
