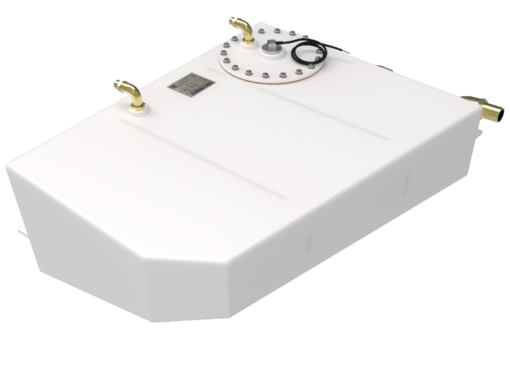

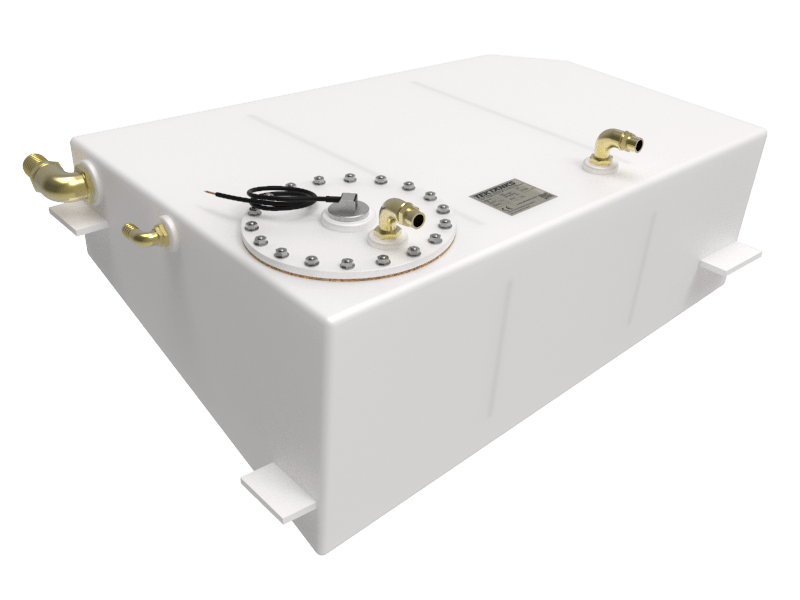

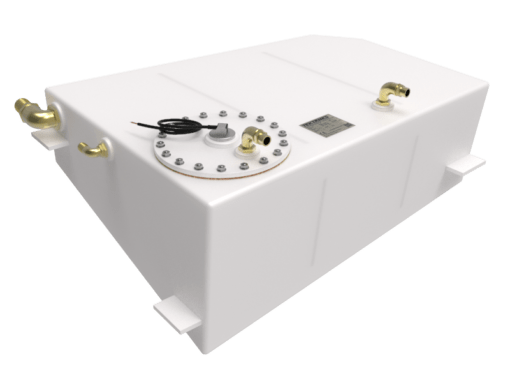

Beneteau Oceanis 473 Diesel Tank

Replacement Diesel Tank for Beneteau Oceanis 473 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 866mm
Width: 687mm
Height: 380mm

Fittings:

1 x 1 1/2″ BSP – 38mm Elbow Brass Hosetail
1 x 3/4″ BSP – 19mm Elbow Brass Hosetail
2 x 1/2″ BSP – 13mm Brass Nipple on Elbow Hosetail
1 x Copper Dip Pipe
3 x Fixing Flange (supplied undrilled)
1 x 1 1/4″ BSP – 32mm Female Socket
1 x Wema Fuel Level Indicator
1 x Wema Analogue Fuel Gauge
1 x ⌀ 270mm  Tek-Tanks “Nuts & Bolts” Diesel Tank Inspection Hatch

Capacity: 114 litres

Position in Boat: Under Aft Bunk

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
