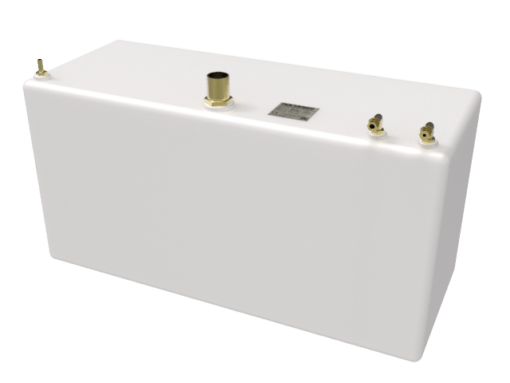

Birchwood 33 Starboard Diesel Tank

Replacement Starboard Diesel Tank for Birchwood 33 Motor Boats.

Rotationally Moulded from 10mm Thick Medium Density Polyethylene.

Overall dimensions (without fittings):

Length: 1020mm
Width: 410mm
Height: 510mm

Fittings:

1 x 2″ BSP – 50mm Straight Brass Hosetail
1 x 12″ BSP – 13mm Straight Brass Hosetail
1 x 3/8″ BSP – 10mm Elbow Brass Hosetail
1 x 1/4″ BSP – 6mm Elbow Brass Hosetail
1 x Copper Dip Pipe

Capacity: 193 litres

Position in Boat: Starboard Aft Cabin

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
