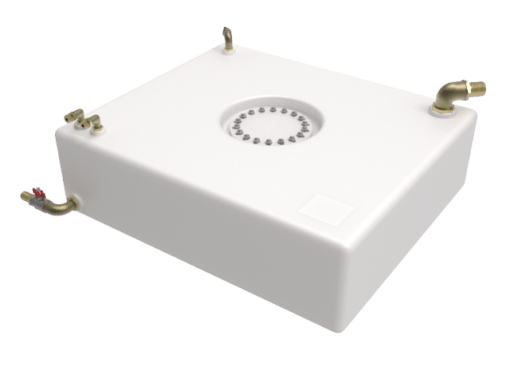

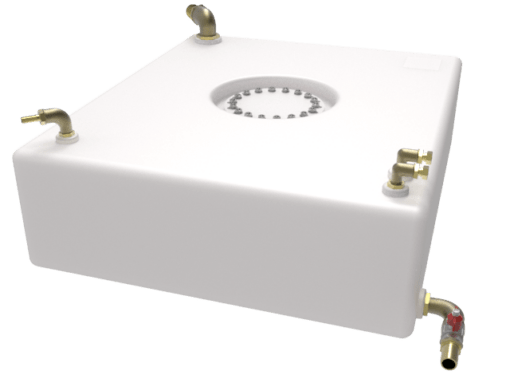

Colvic Watson 9M Starboard Diesel Tank

Replacement Diesel Tank for Colvic Watson 9M Sailing Yachts.

Rotationally moulded from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 830mm
Width: 710mm
Height: 240mm

Fittings:

1 x 1 1/2″ BSP – 38mm Elbow Brass Hosetail
1 x 1″ BSP – 25mm Valved Elbow Brass Hosetail
1 x 1/2″ BSP – 13mm Elbow Brass Hosetail
2 x 5/16″ BSP – 8mm Elbow Brass Hosetail
1 x Copper Dip Pipe
1 x ⌀ 210mm  Diesel Tank Inspection Hatch

Capacity: 122 litres

Position in Boat: Starboard

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
