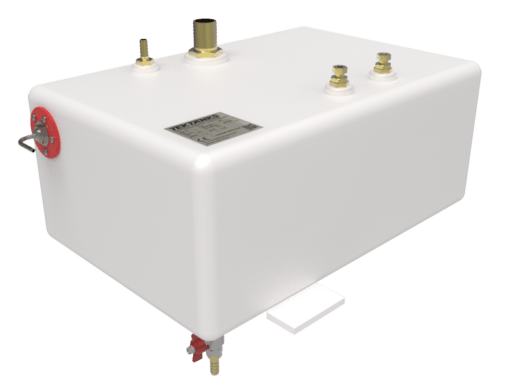

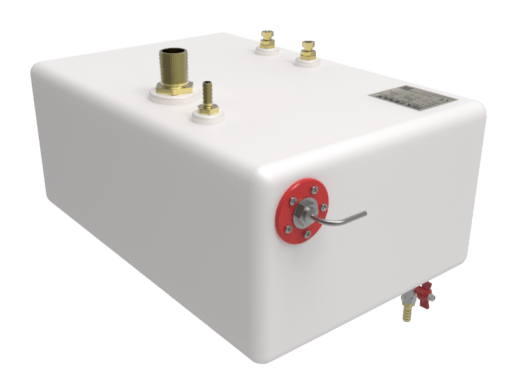

Contessa 32 Diesel Tank

Replacement Diesel Tank for Contessa 32 Sailing Yachts

Rotationally moulded from 10mm thick High-Density Polyethylene

Overall dimensions (without fittings):

Length: 600mm
Width: 400mm
Height: 250mm

Fittings:

1 x 1 1/2″ BSP – 38mm Plastic Elbow Hosetail
1 x 1/2″ BSP – 13mm Plastic Straight Hosetail
1 x 1/2″ BSP – 13mm Plastic Straight Hosetail Valved
1 x 5/16″ BSP – 8mm Brass Straight Hosetail
1 x 1/4″ BSP – 6mm Brass Straight Hosetail
1 x Copper Dip Pipe
1 x Mikuni Heater Pipe
1 x Fixing Flange (supplied undrilled)
1 x Wema Inspection Hatch (FLB)

Capacity: 51 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
