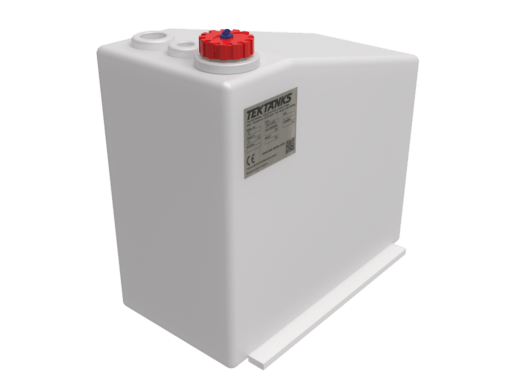

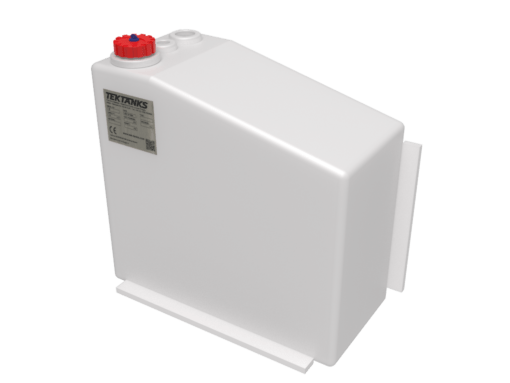

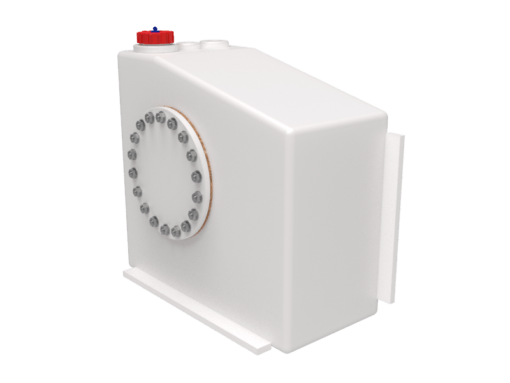

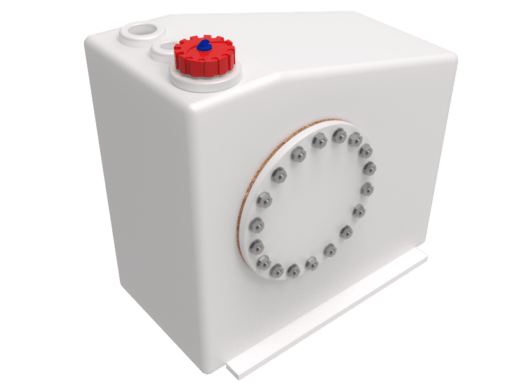

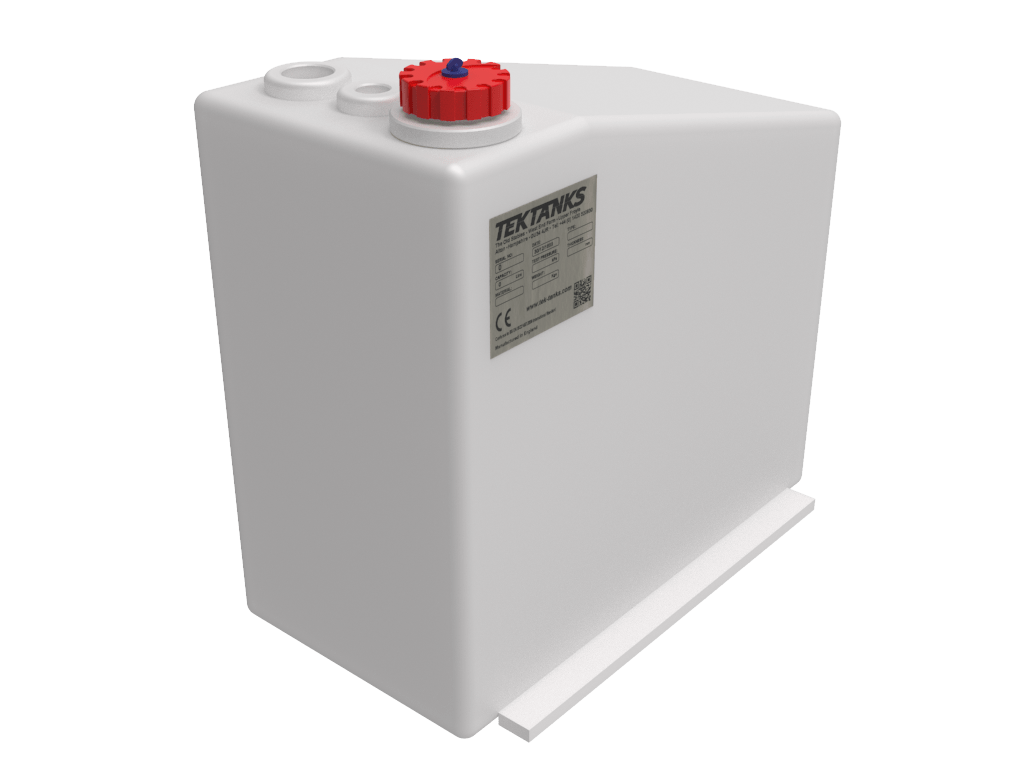

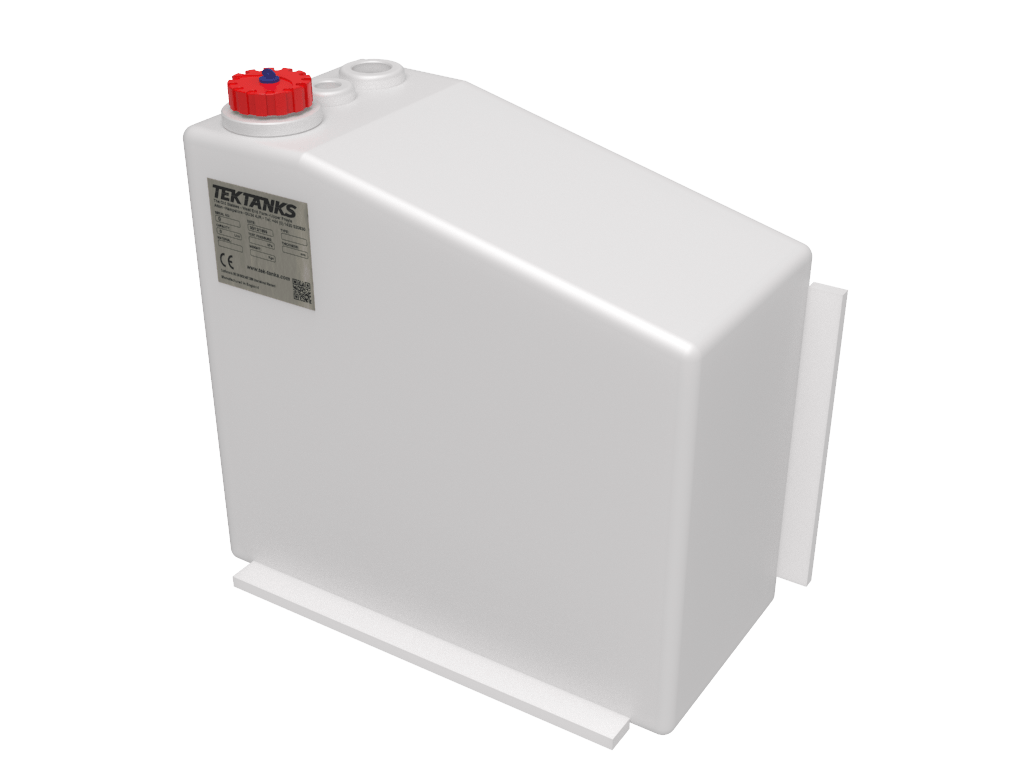

Cornish Crabber 24 MK 1 Diesel Tank

Replacement Plastic Diesel for Cornish Crabber MK 1 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 405mm
Width: 345mm
Height: 370mm

Fittings:

1 x 1 1/2″ BSP – 38mm Vented Cap
1 x 1″ BSP – 25mm Female Socket
1 x 1/2″ BSP – 13mm Female Socket
2 x Fixing Flanges (Supplied Undrilled)
1 x ⌀ 200mm Tek-Tanks “Nuts & Bots” Inspection Hatch

Capacity: 22 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
