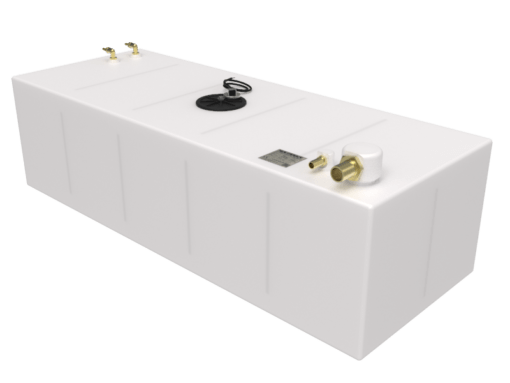

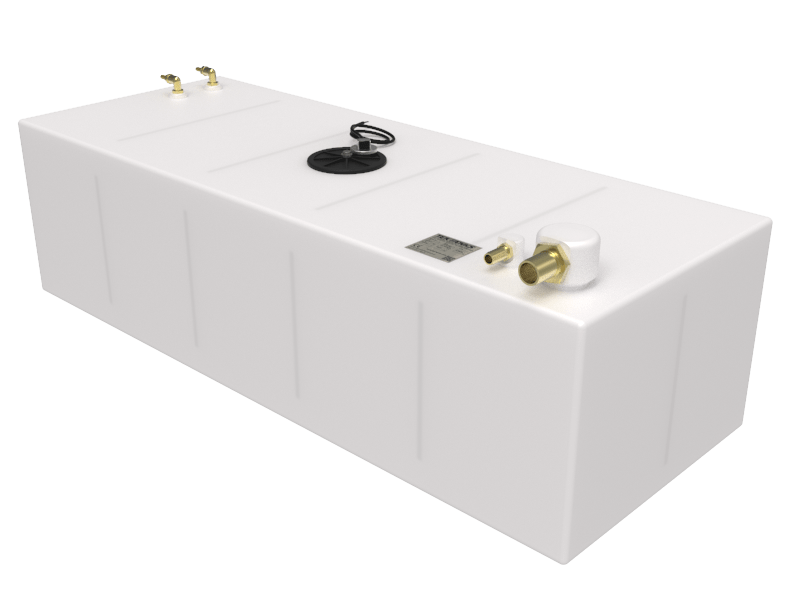

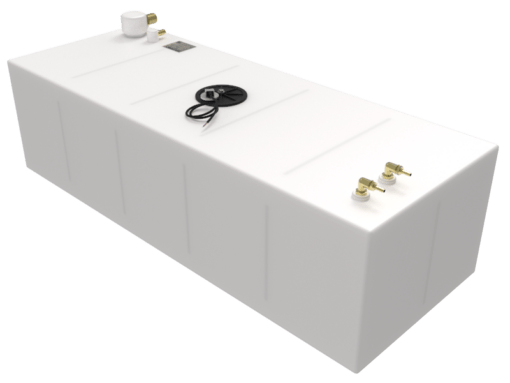

Coronet 24 Diesel Tank

Replacement Diesel Tank for Coronet 24 Motor Boats.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1450mm
Width: 550mm
Height: 400mm

Fittings:

1 x 38mm Fixed Elbow Brass Hosetail
1 x 19mm Fixed Elbow Brass Hosetail
2 x 3/8″ BSP – 10mm Brass Elbow Hosetail
1 x Copper Dip Pipe
1 x FLB Wema Inspection Hatch
1 x S3 Series Fuel Level Indicator
1 x Analogue Fuel Gauge

Capacity: 280 litres

Position in Boat: Midships

Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
