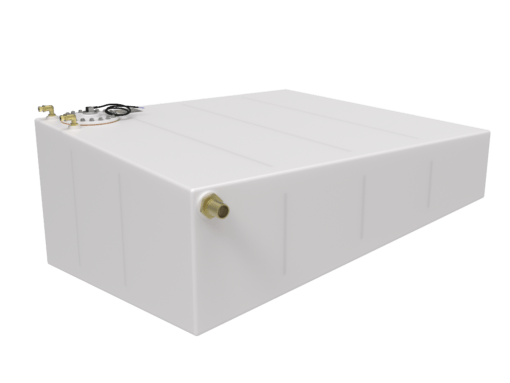

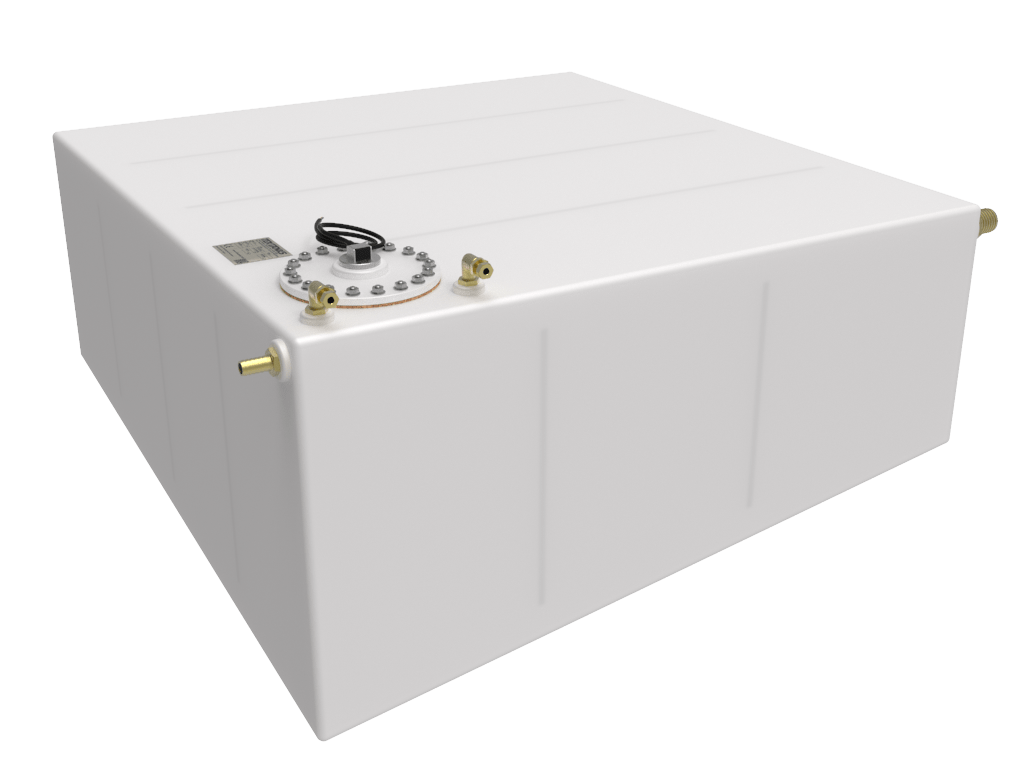

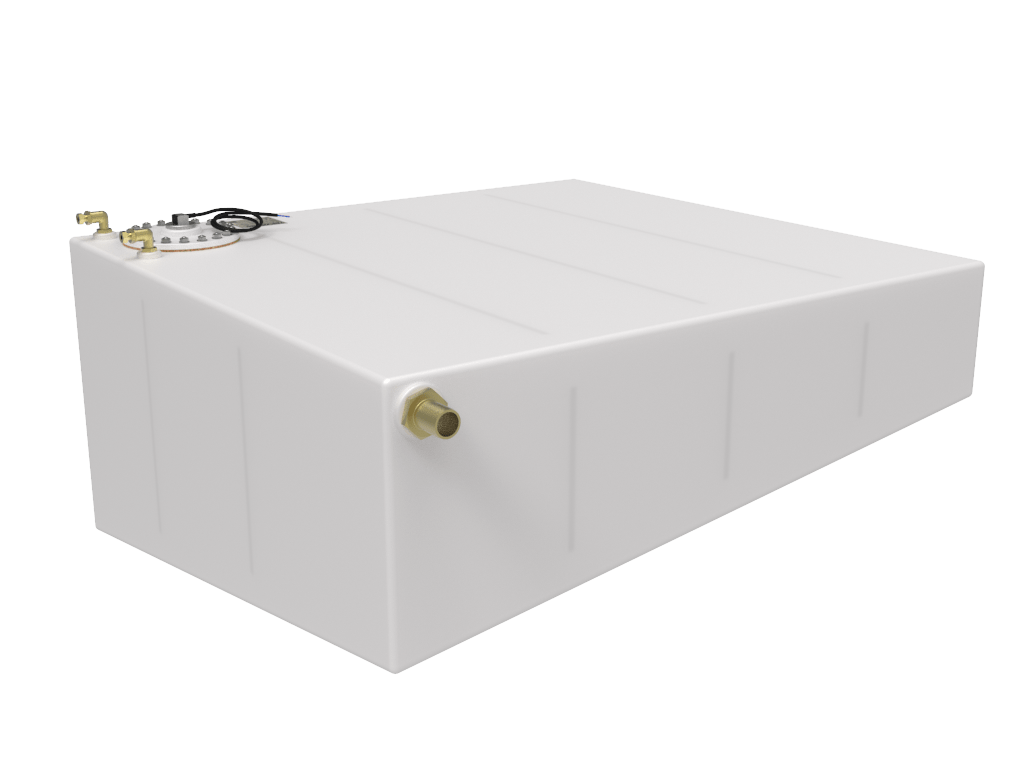

Cygnus GM 32 Diesel Tank

Replacement Plastic Diesel in for Cygnus GM 32 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1140mm
Width: 1080mm
Height: 431mm

Fittings:

1 x 1 1/2 BSP – 38mm Brass Straight Hosetail
1 x 3/4″ BSP – 19mm Brass Straight Hosetail
2 x 5/16″ BSP – 8mm Brass Elbow Hosetail c/w compression stud
1 x Copper Dip Pipe
1 x 1 1/4″ BSP Female Socket
1 x 200mm Nuts & Bolts Inspection Hatch
1 x Wema Analogue Fuel Level Gauge
1 x Wema Fuel Level Indicator

Capacity: 443 litres

Position in Boat: Starboard Stern

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
