EZI Seal Dip Pipe Assemblies

EZI Seals are a range of fittings for plastic and metal tanks. EZI Seal fittings are designed to be used in a wide variety of applications including: agriculture, automotive, marine, welfare, garden and many more.
The EZI Seal fitting can be installed through the tank wall directly from the outside of the tank, and do not require welding or the use of any sealants.
EZI Seals will withstand a pressure of up to 4 bar on a flat surface or with a minimum internal radius of 500mm.

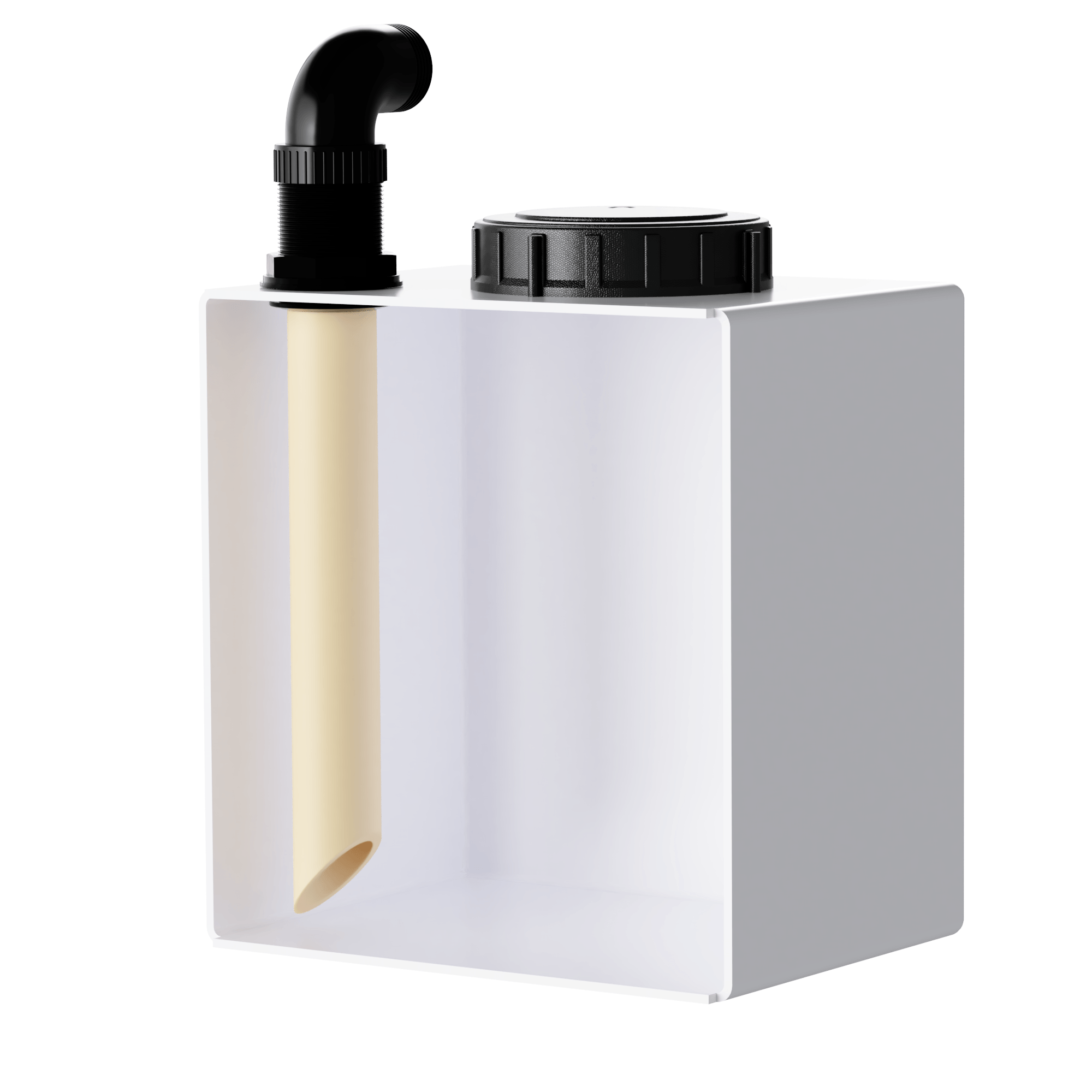

EZI Seal Dip Pipe Assemblies include the EZI Seal fitting plus a fusion welded polypropylene pipe.

Order a Dip Pipe Assembly that is longer than the height of the tank and cut down to length using any saw so that the end of the pipe is roughly 10mm from the bottom of the tank. With waste tank applications using the 50mm pipe, cut the pipe at an angle of 45 degrees so as to allow any solids to enter the pipe.

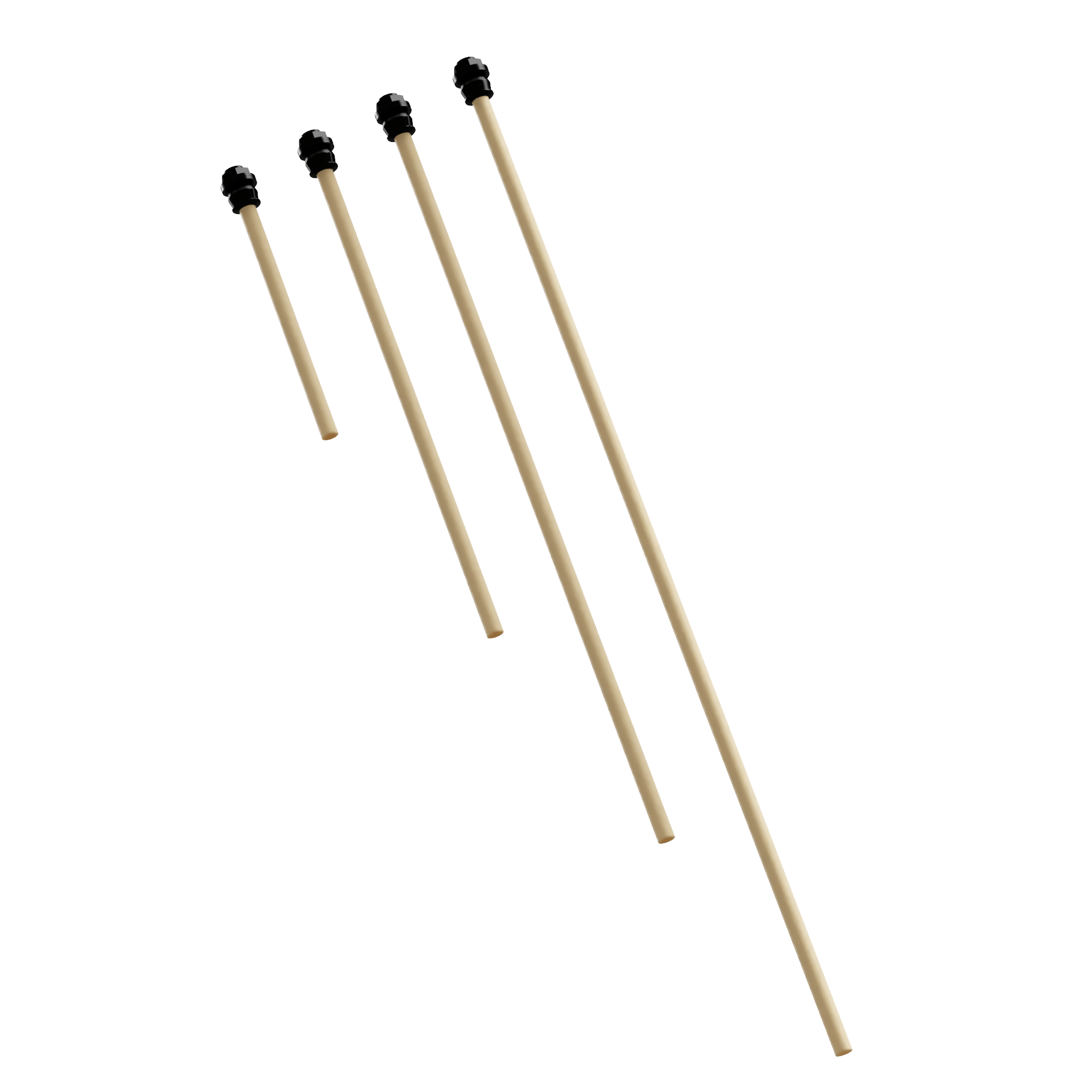

3/4″ BSP EZI Seals have a 25mm OD pipe. Ideal for use with Potable Water Tanks

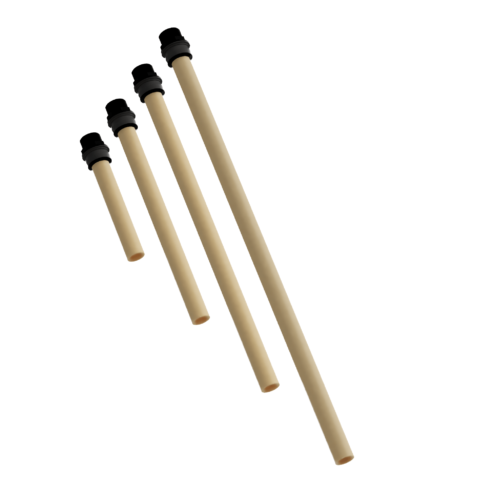

1 1/2″ BSP EZI Seals have a 50mm OD pipe. Ideal for use with Waste Water Tanks

Features

• Can be installed quickly from the outside of the tank
• No welding or sealants required
• Will withstand a pressure of 4 bar
• Can be used on cylindrical tanks (minimum internal radius of 500mm)
• Maintenance free
• Reliable and long lasting

Tek Tanks only stock EZI Seals that are suitable for drinking water and waste water. EZI Seals are however available to suit oils, diesel and petrol if required. Please ask for more details.

A range of Straight Hosetails to suit the EZI seals are available here.
A range of Elbow Hosetails to suit the EZI Seals are available here.

Download the Data Sheet to check that the EZI seal will be suitable for your tank. The wall thickness maybe too thin or too thick.

A range of hole saws and arbors are available here.
