Fairline Phantom 43 Diesel

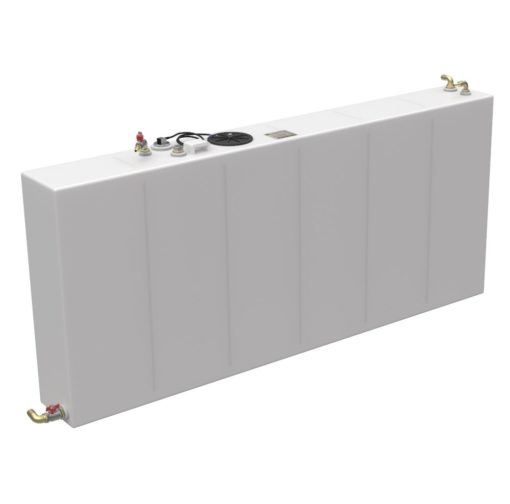

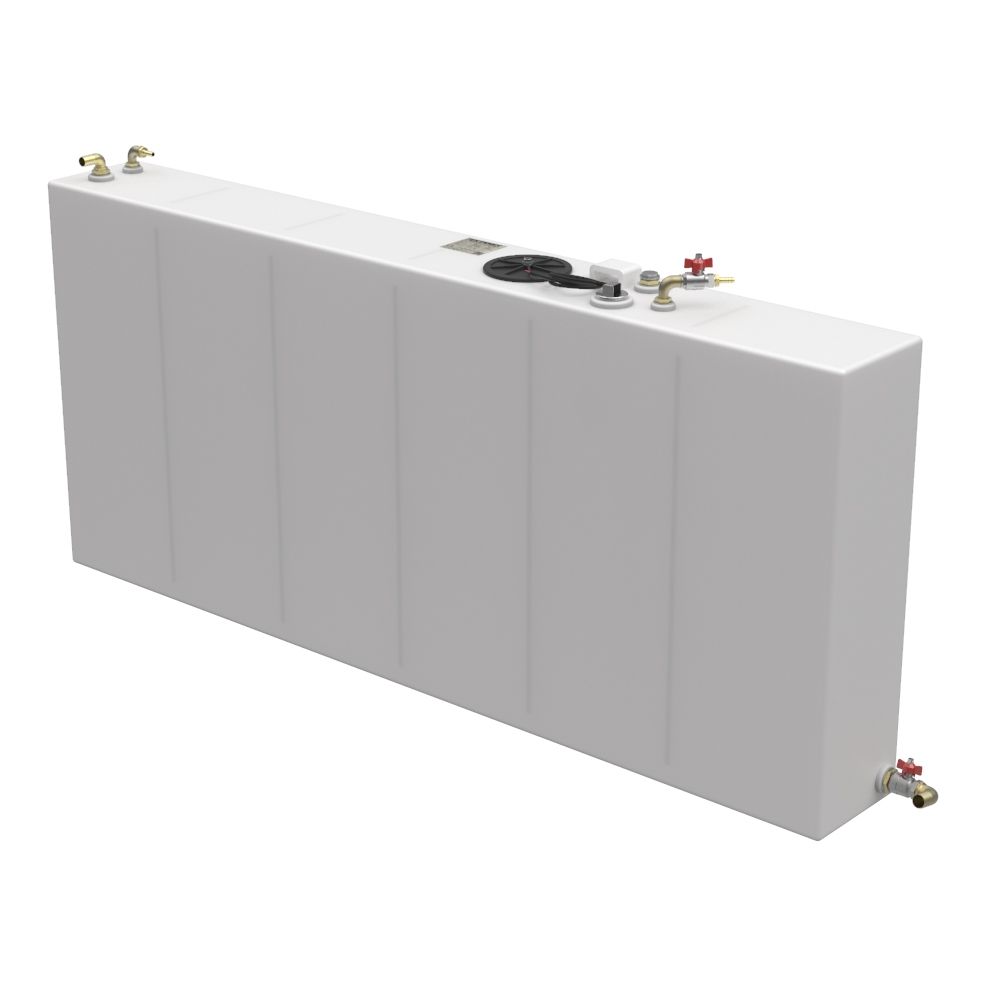

Fairline P43 Diesel Tank made from 10mm Natural High Density Polyethylene

Overall dimensions without fittings:

Length:1800mm
Width: 230mm
Height: 790mm

Fittings:

2 x 1/2″ BSP – 10mm Brass Elbow Hosetails
2 x Copper Dip Pipes
1 x 3/4″ BSP – 19mm Brass Elbow Hosetail
1 x 1 1/4″BSP – 1″ BSP Reducing Bush with 25mm Elbow Tap and Hosetail
1 x 3/4″ BSP 19mm Dip Pipe with Brass Plug
1 x FLB Wema Inspection Hatch
1 x 1 1/4″ BSP  Female Socket for S3-75 Wema Fuel Sender (Sender and IPFR Fuel Gauge Included within the price)

Capacity: 280 litres

Position in boat: Port Aft Cabin Inboard

Drawings are available at a cost of £75.00 + VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
