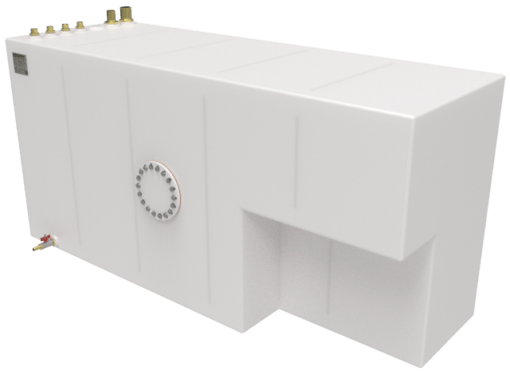

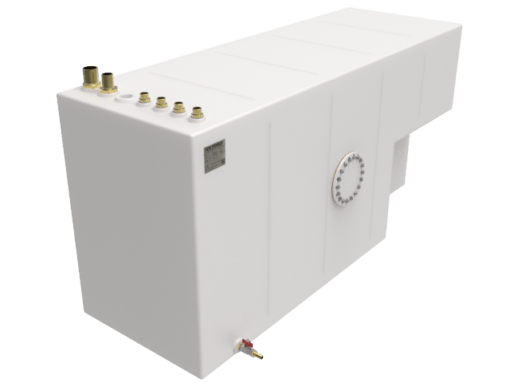

Gemini 10M Catamaran Diesel Tank

Replacement Diesel Tank for Gemini 10M Catamaran.

Manufactured from High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1750mm
Width: 600mm
Height: 850mm

Fittings:

1 x 2″ BSP – 50mm Straight Brass Hosetail
1 x 1 1/2″ BSP – 38mm Straight Brass Hosetail
1 x 1 1/4″ BSP – 32mm Plastic Female Socket
2 x Plastic Dip Pipe
1 x 2″ BSP – 50mm Plastic Female Socket
4 x 3/4″ BSP – 19mm Male Nipple
1 x 15/8″ BSP – 16mm  Straight Brass  & Valve Hosetail
1 x ⌀ 210mm  Diesel Tank Inspection Hatch

Capacity: 756 litres

Position in Boat: Aft Hold

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
