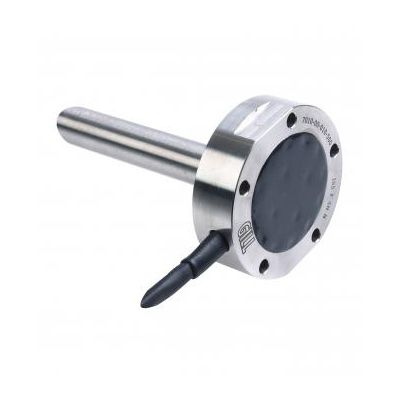

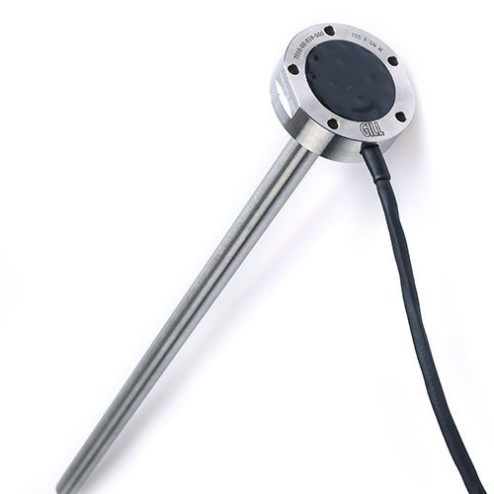

Gill 7010 Liquid Level Sensor
£878.40 – £1,172.40 Inc VAT
The 7010 Liquid Level Sensor is available in lengths up to 2m long and is designed for environments where monitoring of a variety of liquid types is required.
Suitable for Water, Diesel, Petrol, Oils, Saline and Chemicals.
Documentation
The 7010 Liquid Level Sensor is available in lengths up to 2m long and is designed for environments where monitoring of a variety of liquid types is required. The sensor uses solid-state capacitive technology to sense the level of the liquid, with no moving parts, floats or other mechanical linkages to provide excellent long term reliability.
It features two output options, analogue voltage or current to suit a variety of applications.
Built from 316 stainless steel, the level sensor will provide corrosion resistance in harsh environments. The sensor features SAE 5-Bolt mounting with a 1.25” BSP thread.
A flange gasket and O-ring seal are supplied with each unit.
Gill Sensors & Controls quality control ensures that every sensor is factory calibrated with temperature compensation to provide market leading accuracy of liquid level measurement.
Features
- Compatible with water, saline, fuels,oils and chemicals
- Stainless Steel construction
- No moving parts for high reliability
- Bolt or thread mounting (1 1/4″ BSP)
- Accuracy +/- 2% FSD
- Factory calibrated
The Gill 7010 sensors are all made to order. Please allow 4 weeks from date of order for manufacturing. Standard lead times do not apply to call off orders.
Tek Tanks can supply the 7010 in longer lengths up to 2 metres if required. Please phone for more information and pricing.
| Weight | N/A |
|---|---|
| Output Type | 0-10 Volts, 4-20 mA |
| Length | 100, 125, 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1100, 1200, 1300, 1400, 1500 |
