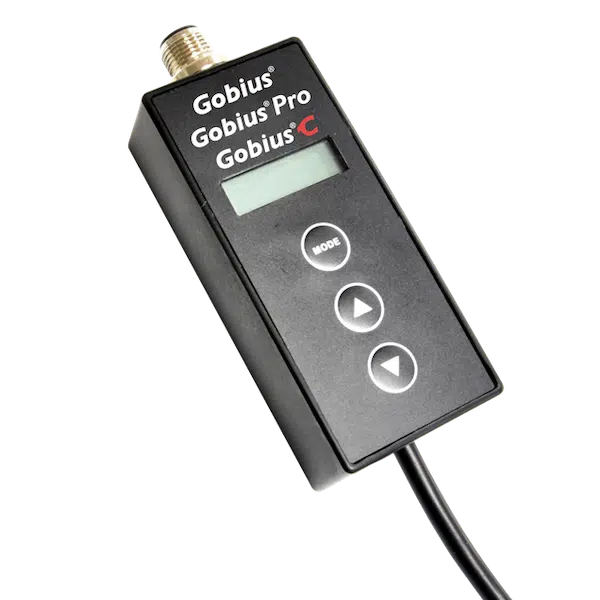

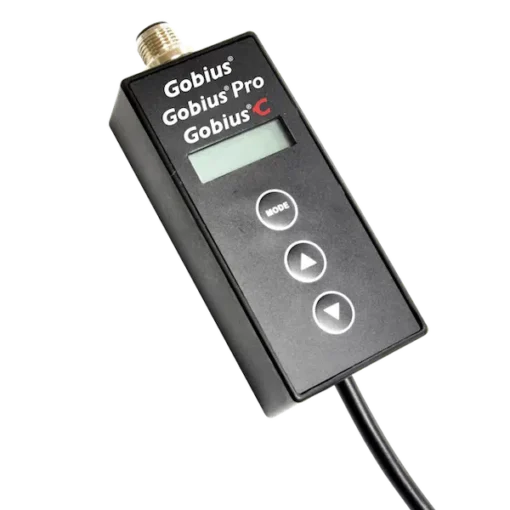

Gobius NMEA2000 Converter

This new Converter transform analog sensor data from Gobius, Gobius Pro and Gobius C and other indicators into NMEA2000 data. The converter can also be used for: motor data, pressure or temperature data from existing sensors into NMEA2000 networks. You can connect up to 4 channels (tanks).

Specifications:

• Input signals: 0-190 Ohm, 240-33 Ohm, Self-defined (0-999 Ohm)
• Dimension: 90 x 40 x 25 mm
• Weight: 115 g
• Cable lenght: 1 meter
• Protection Rating: IP67
• Signal Output: NMEA 2000/J1939 Network Messages
• Operating Voltage: 9~16V
• Connector: Male “Micro-C” Pinout
• Operation Temperature: -40°F ~ +185°F(-40°C~+85°C)
• Power consumption: <50mA
• Connect the Converter direct to Gobius products

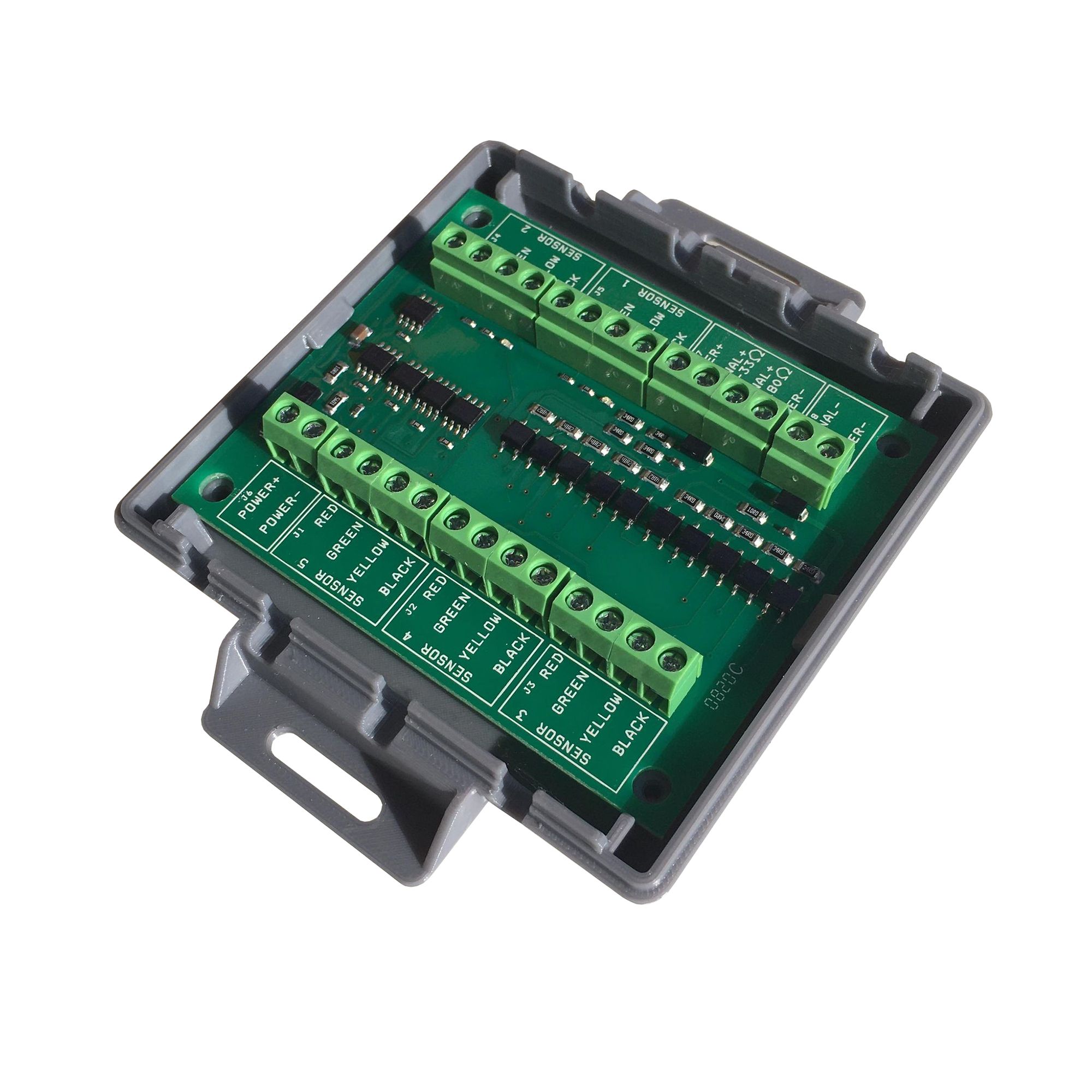

• Connect the Converter via the HUB to Gobius Pro sensors
• Instructions for connecting Gobius and Gobius Pro included
  Can also be downloaded at Gobius Pro
• Can also be downloaded at Gobius C
• Manfacturer: KUS, China
