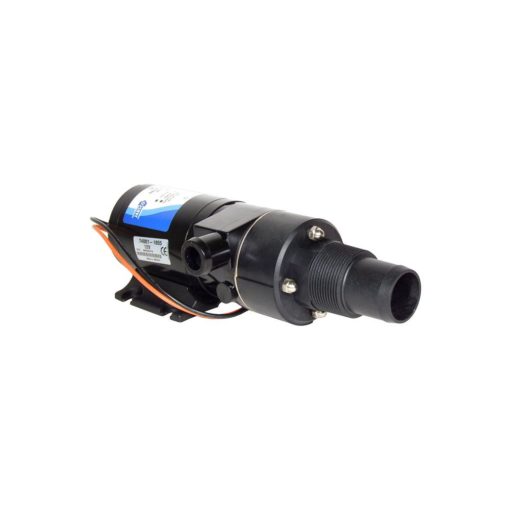

Jabsco Macerator Pump

• Connections: – for 38mm (1½”) bore inlet hose, 25mm (1”) bore discharge hose
• Dimensions: – 290mm long, 120mm wide, 95mm high
• Fuse Size: – 12 volt – 20(amp) / 24 volt – 15(amp)
• Output: – up to 43 litres/minute (9 gallons/minute) at 3m total head. Maximum recommended total head 6m
• Compact toilet waste macerator pump
• 15 minute rated, for use with waste holding tanks up to 900 litres (200 gallons) capacity
• Grinds raw toilet waste to a uniform slurry for easy transfer and discharge
• Self-priming up to 0.6m vertical lift
• Fully sealed motor with Dry-Run protection device
• Heavy duty 4 blade chopper
