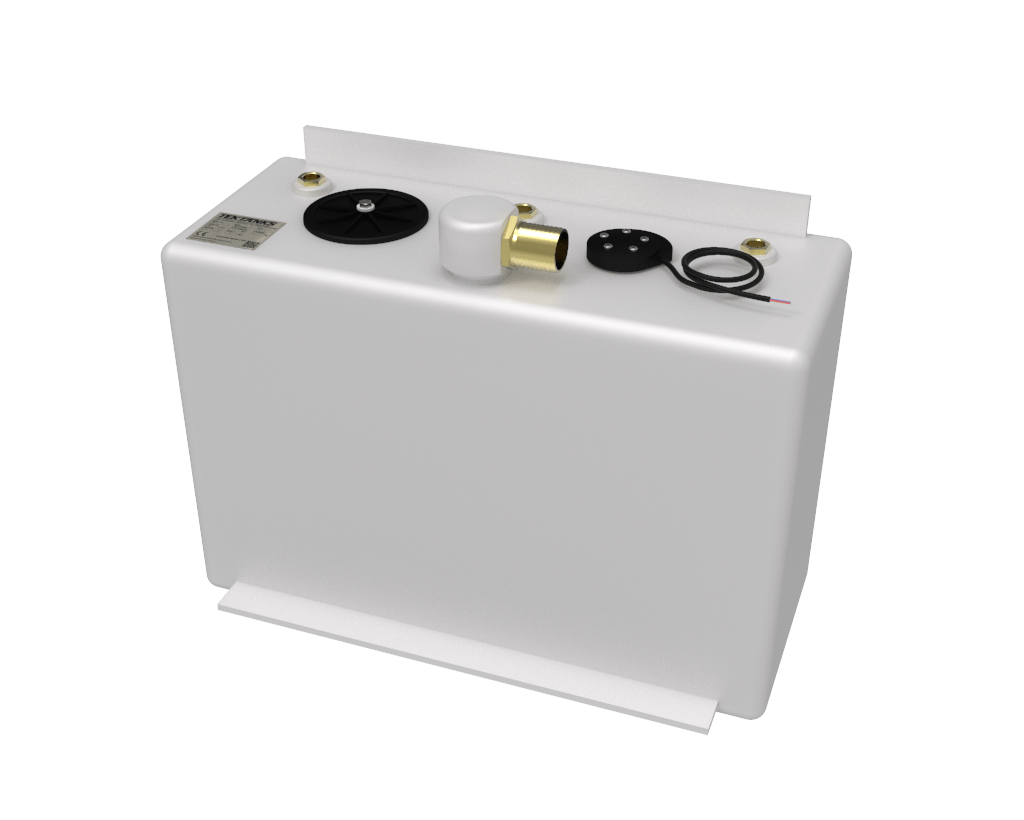

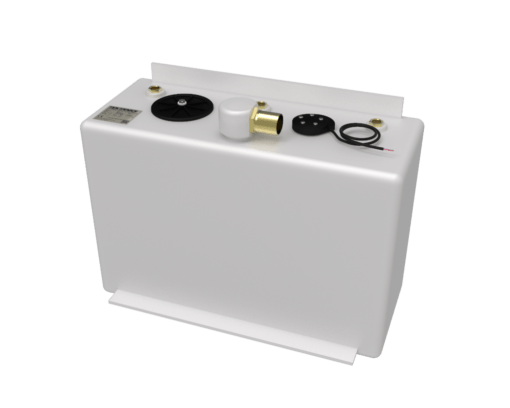

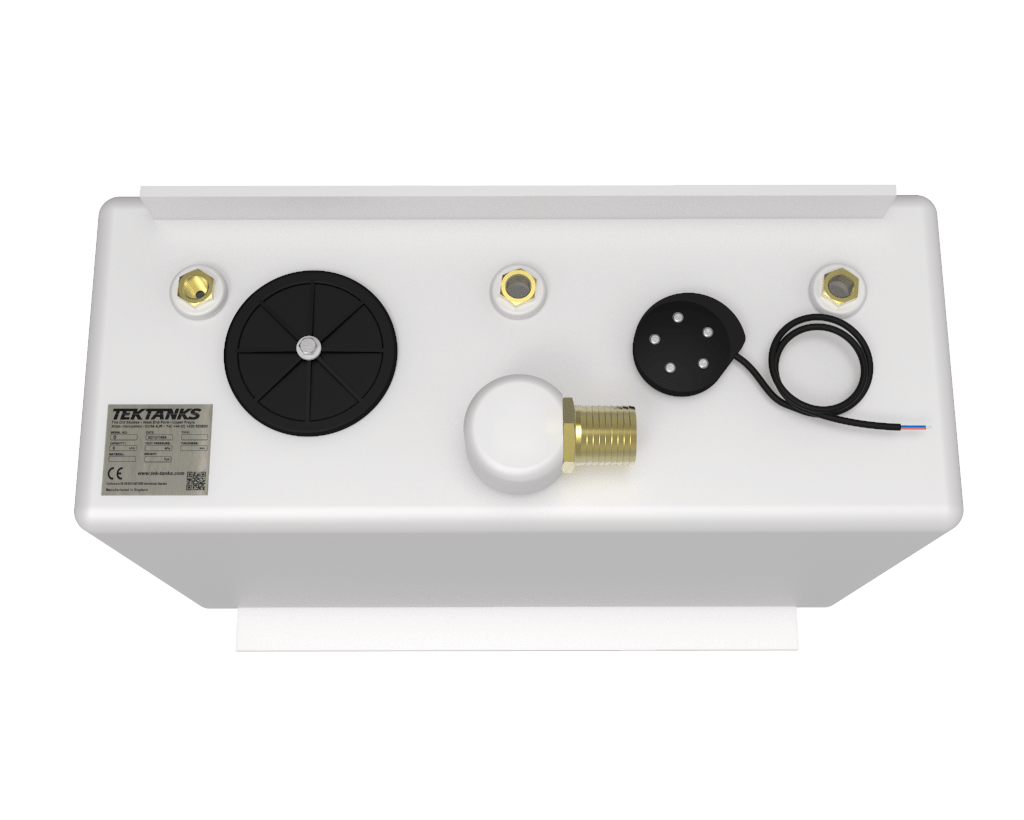

Lagoon 38 Port Diesel Tank

Replacement Diesel Tank for Lagoon 38 Sailing Yachts.

Rotationally Moulded from Medium-Density Polyethylene.

Overall dimensions (without fittings):

Length: 760mm
Width: 310mm
Height: 510mm.

Fittings:

1 x 2″ BSP – 50mm Fixed Elbow Brass Hosetail
3 x 3/4″ BSP – 1/2″ BSP Brass Reducing Bush
1 x Copper Dip Pipe
1 x Ultrasonic Level Indicator
2 x Fixing flange
1 x Standard Inspection Hatch

Capacity: 106 litres

Position in Boat: Port

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
