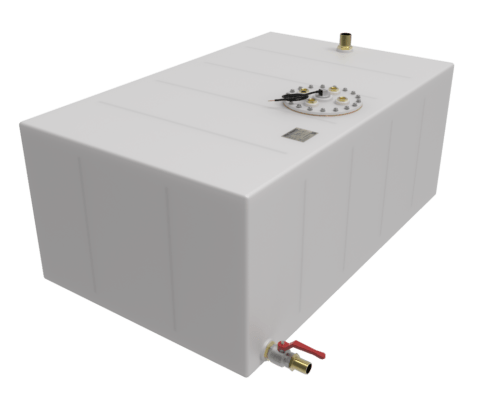

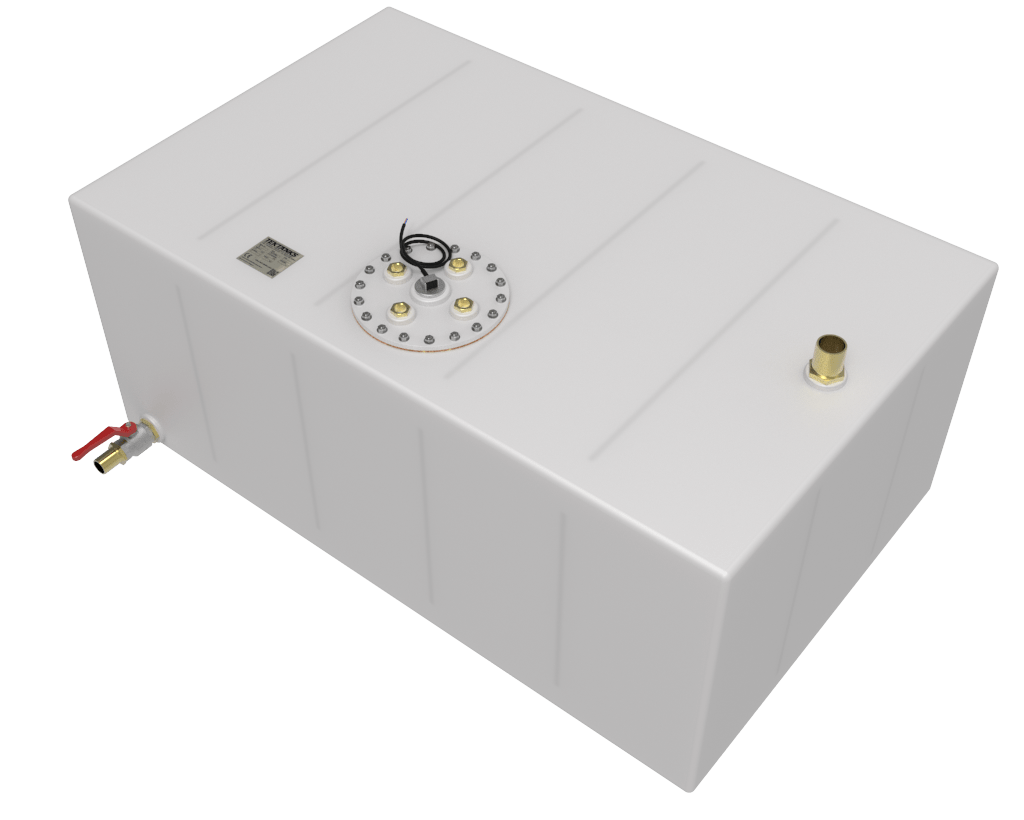

Lochin 40 Starboard Diesel Tank

Replacement Diesel Tank for Lochin 40 Motor Boats.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1450mm
Width: 900mm
Height: 600mm.

Fittings:

1 x 2″ BSP – 50mm Brass Straight Hosetail
1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail – Valved
3 x 3/4″ BSP – 1/2″ BSP Brass Reducing Bush
2 x Copper Dip Pipe
1 x 3/4″ BSP – 19mm Straight Brass Hosetail
1 x 1 1/4″ BSP Socket
1 x 270mm Nuts and Bolts Hatch
1 x S3-55 Wema Level Indicator
1 x Analogue Fuel Gauge

Capacity: 700 litres

Position in Boat: Starboard

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
