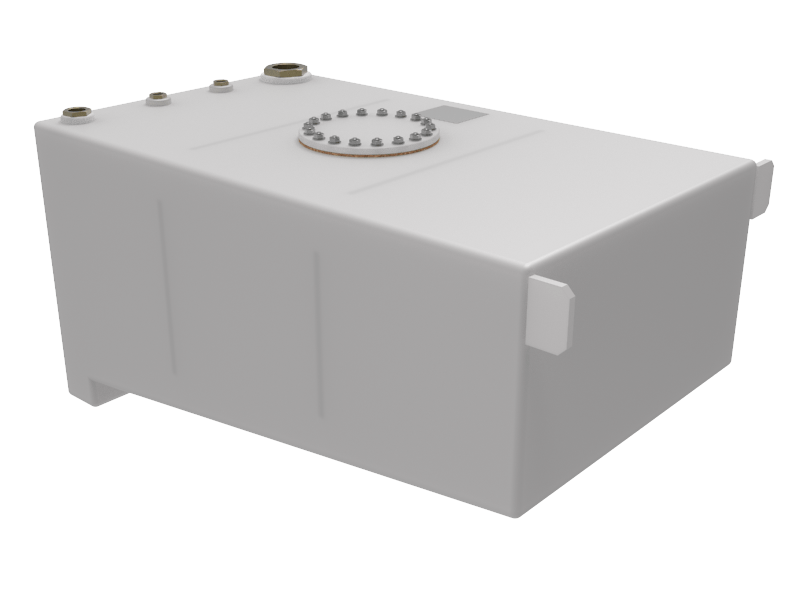

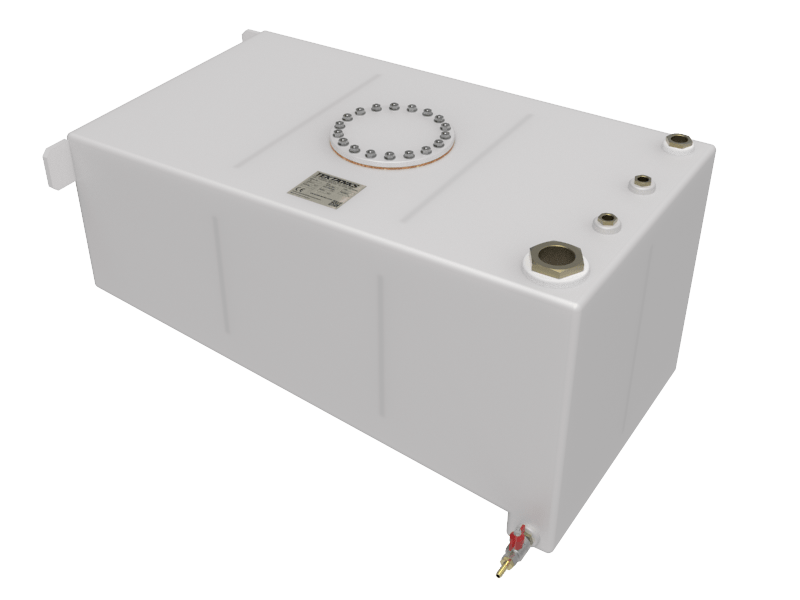

Sigma 41 Diesel Tank

Replacement Diesel Plastic Tank for Sigma 41 in Midships.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 915mm
Width: 530mm
Height: 465mm

Fittings:

1 x 3/8″ BSP – 10mm Brass Straight Hosetail (Valved)
1 x Tek-Tanks Custom Nuts & Bolts Inspection hatch (200mm O.D.)
1 x 1 – 3/4″ – 25-19mm Brass Reducer
1 x 2 – 1 1/2″ BSP – 50-38mm Brass Reducer
2 x 1/2″ – 3/8″ BSP – 13-9mm Brass Reducer
1 x Copper Dip Pipe
2 x Undrilled Fixing Flanges

Capacity: 155 litres

Position in Boat: Midships

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
