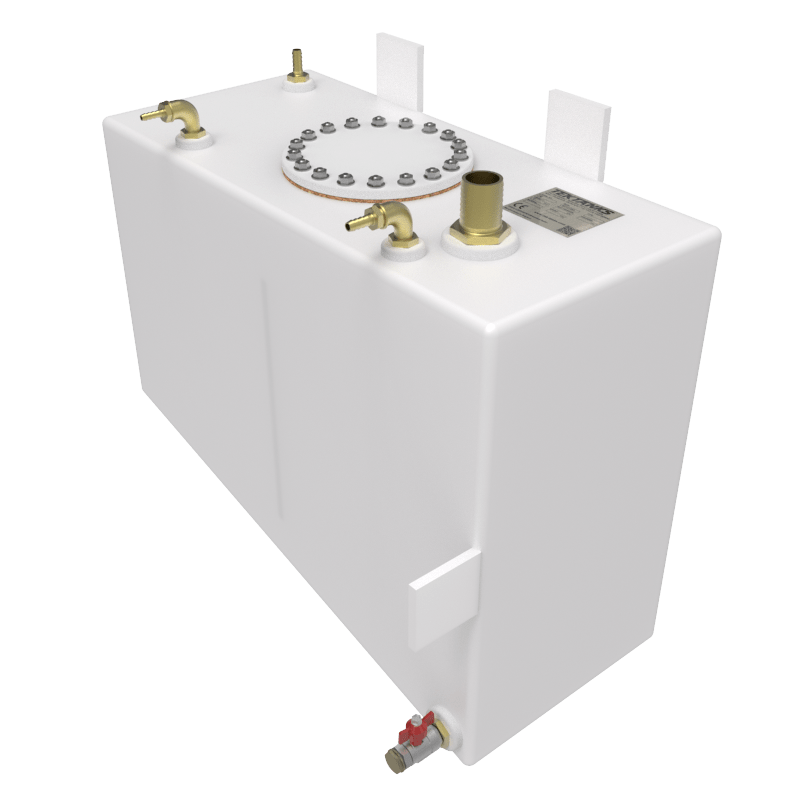

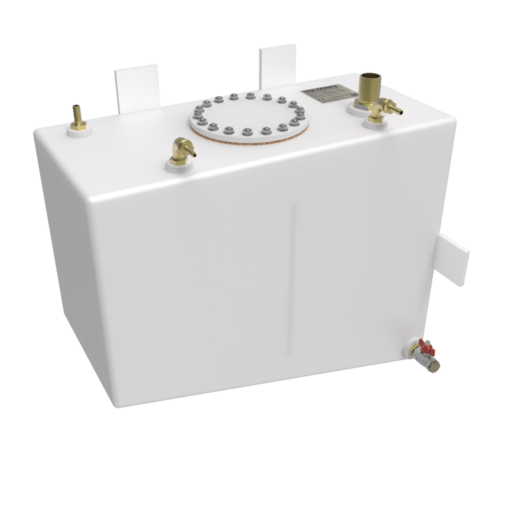

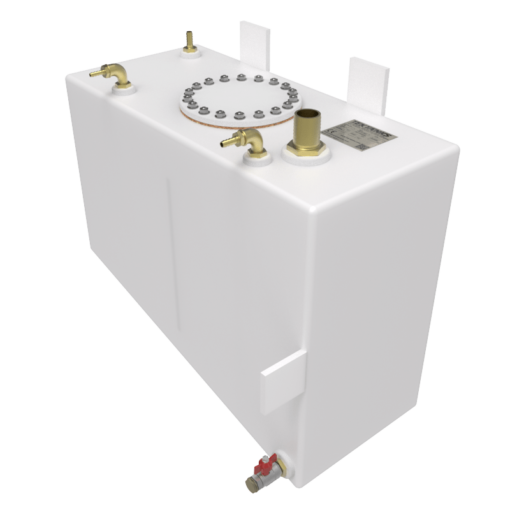

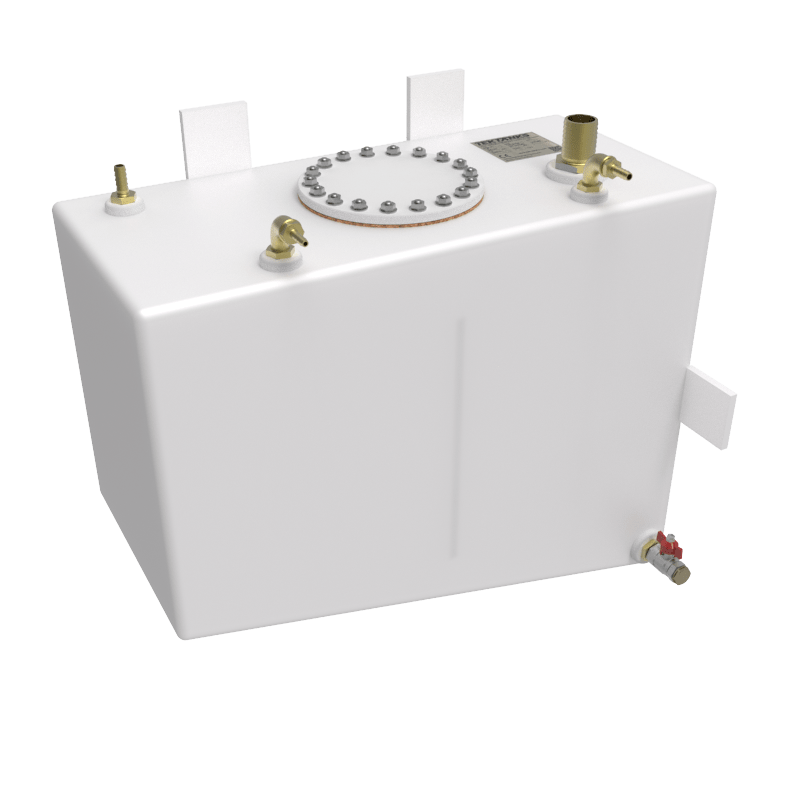

Moody 29 Diesel Tank

Moody 29 Diesel Tank

Material: 10mm Natural High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 660mm
Width: 305mm
Height: 533mm

Fittings:

1 x 3/8″ BSP – 10mm Brass Elbow
1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 1/2″ BSP – 13mm Brass Straight Hosetail
1 x 3/8″ BSP – 8mm Brass Elbow Hosetail
1 x Copper Dip Pipe
1 x 200mm Nuts and Bolts Hatch
5 x Undrilled flanges

Capacity: 78 litres

Position in Boat: Port Side of Fwd Cockpit Locker

Drawings are available at a cost of £75.00 VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
