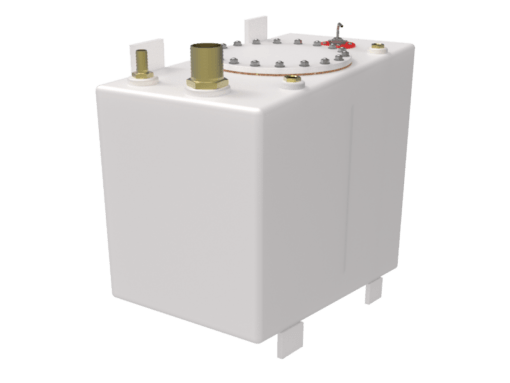

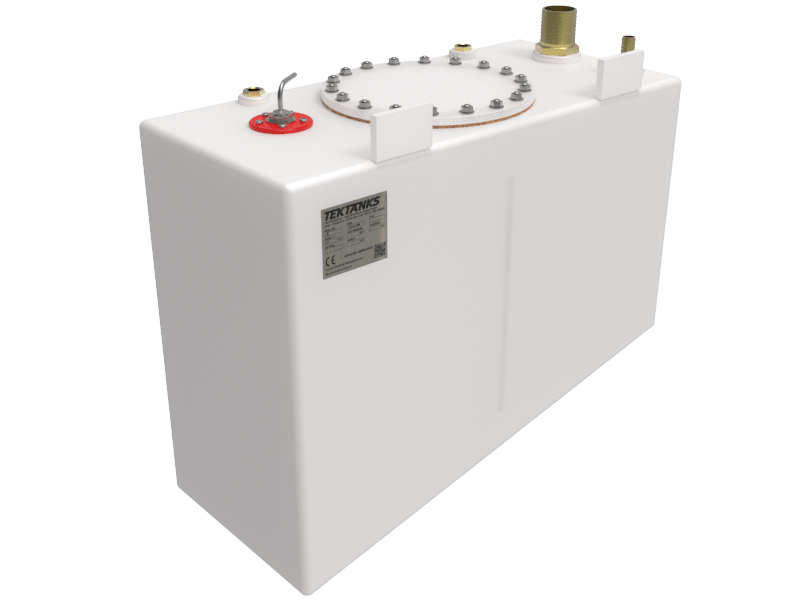

Moody 31 Diesel Tank

Replacement Diesel Tank for Moody 31 Sailing Yachts in Port Cockpit Locker.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 660mm
Width: 308mm
Height: 535mm

Fittings:

1 x 2″ BSP – 50mm Brass Straight Hosetail
1 x 3/4″ BSP – 19mm Brass Straight Hosetail
2 x 1 1/4″ BSP – 32mm Female Socket
2 x 1/2″-3/8″ 13-9mm Reducer
1 x ⌀ 270mm Tek-Tanks “Nuts & Bots” Inspection Hatch
1 x Copper Dip Pipe
4 x Fixing Flanges (supplied undrilled)
1 x Mikuni Heater Pipe

Capacity: 80 litres

Position in Boat: Port Cockpit Locker

Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
