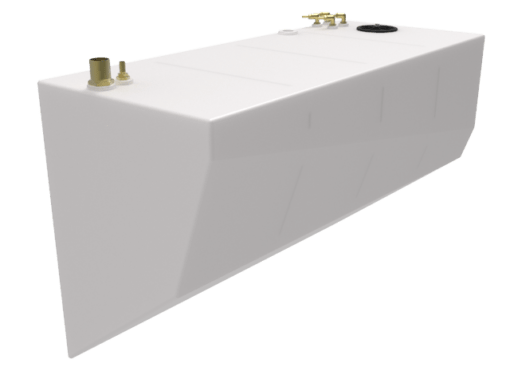

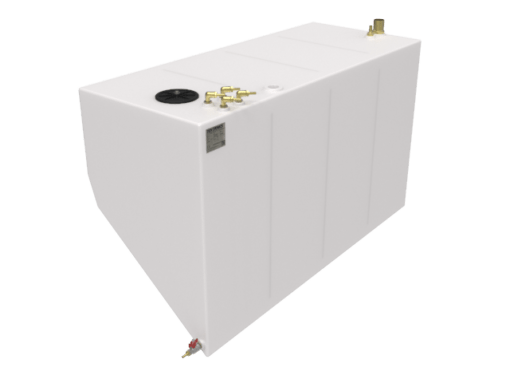

Nauticat 34 Diesel Tank

Replacement Starboard Diesel Tank for Nauticat 34 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1450mm
Width: 605mm
Height: 910mm

Fittings:

1 x 1/4″ BSP – 6mm Brass Straight Hosetail Valved
4 x 3/8″ BSP – 10mm Brass Elbow Hosetail
1 x 5/8″ BSP – 16mm Brass Straight Hosetail
1 x 2″ BSP – 50mm Brass Straight Hosetail
3 x Brass Dip Pipe
1 x 1 1/4″ BSP Female Socket
1 x Wema Inspection Hatch (FLB)

Capacity: 496 litres

Position in Boat: Starboard

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead to isolate them from the engine.
