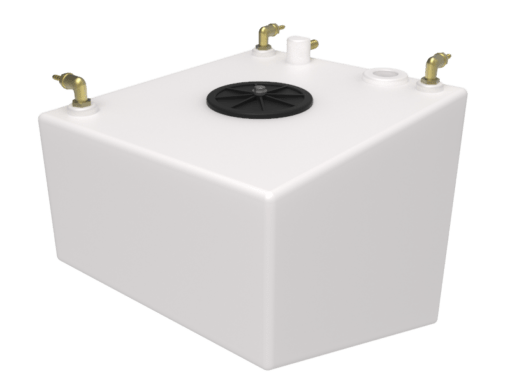

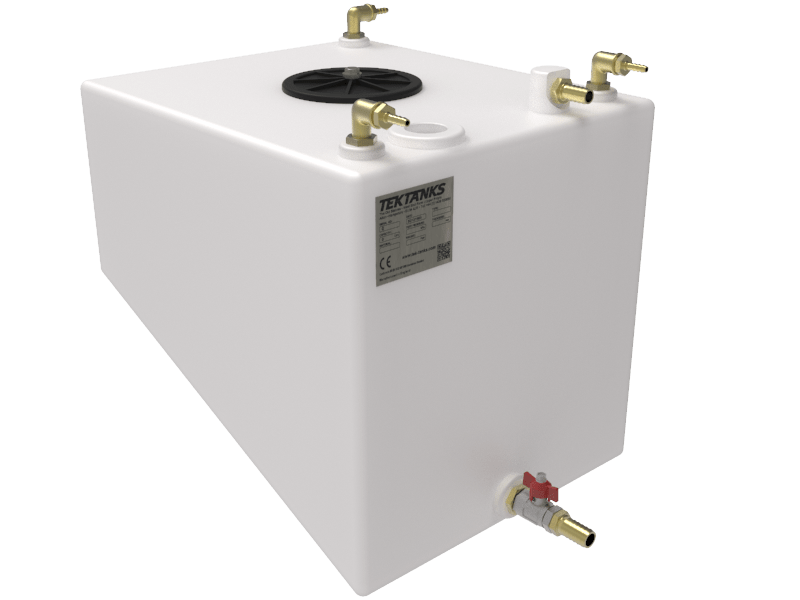

Nelson 30 Diesel Tank

Replacement Diesel Tank for Nelson 30 Sailing Yachts.

Manufactured in the UK from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 482mm
Width: 406mm
Height: 430mm

Fittings:

3 x 5/16″ BSP – 8mm Brass Elbow Hosetail
1 x 16mm Fixed Elbow Brass Hosetail
1 x 3/4″BSP – 19mm Straight Brass Hosetail Valved
2 x Copper Dip Pipe
1 x Wema Inspection Hatch (FLB)
1 x 1 1/4″BSP – 32mm Female Socket

Capacity: 54 litres

Position in Boat: Midships

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
