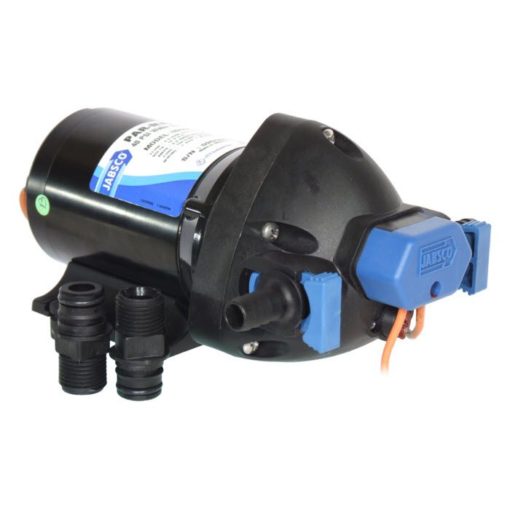

Par Max 2 Diaphragm Pump

Name: Par Max 2 Diaphragm Pump
SKU: 913
Availability: BackOrder

£117.35 – £123.53 Inc VAT

Par Max 2 pressure controlled pump.

Voltage

Clear

SKU: N/A Category: Pressurised Water Pumps Tags: Jabsco, Water Pumps

Connections: for 13mm (½”) bore hose or Hep20 push-fit connectors CW193
Dimensions: 231mm long, 99mm wide, 106mm high
Fuse Size: 12 Volt -10(amp) 24 Volt – 5 (not included)(amp)
Maximum Current: 12 volt – 3.5(amps) / 24 volt 3(amps)
Output: 7.6 litres/minute (2 gallons/minute) open flow
Pressure Switch: – cuts in at 1.7bar (25psi) – cuts out at 2.4bar (35psi)
Efficient, high-flow, self-priming pump serving 2 or more outlets
Multi-diaphragm design self primes to 1.8m vertical lift, can run dry without damage
Supplied with 2 x 1/2″ (13mm) Straight Hose barb. Other snap-in ports for hose or Hep20 connectors are available.
Quiet running
Motor protected by automatic thermal overload cut-out
Includes bypass feature to provide smooth, quiet flow.

Weight	3 kg
Voltage	12 Volts, 24 Volts
