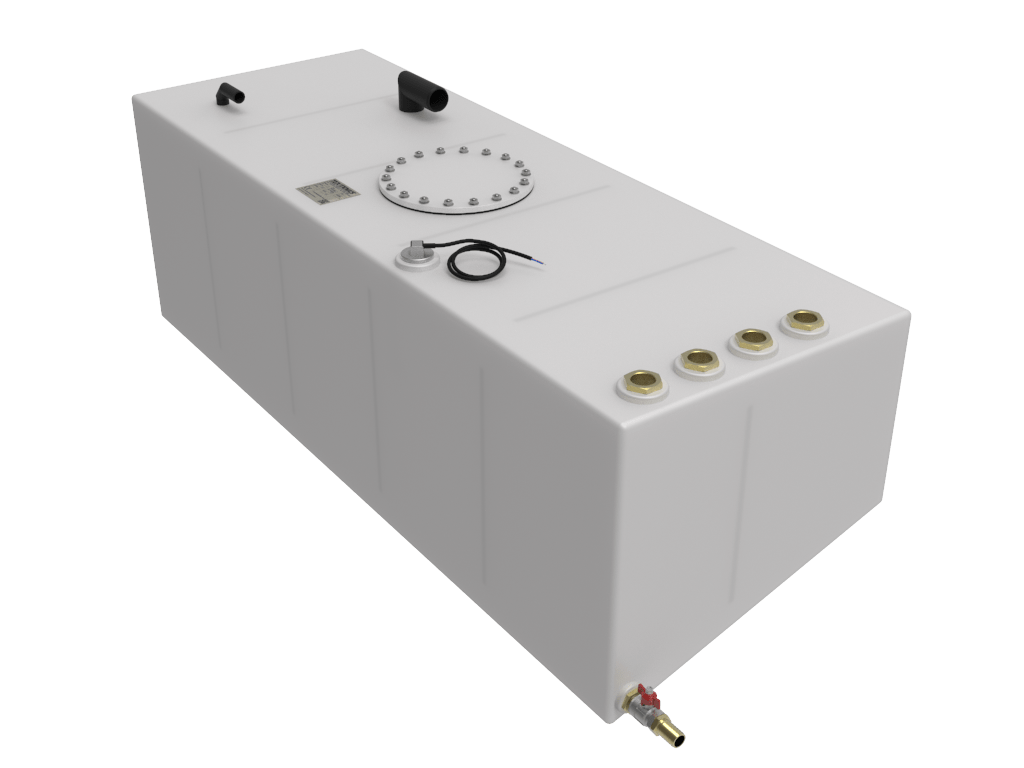

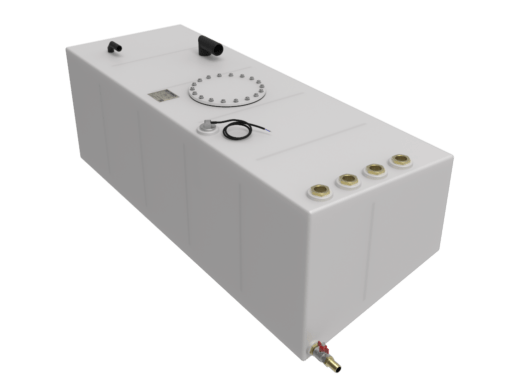

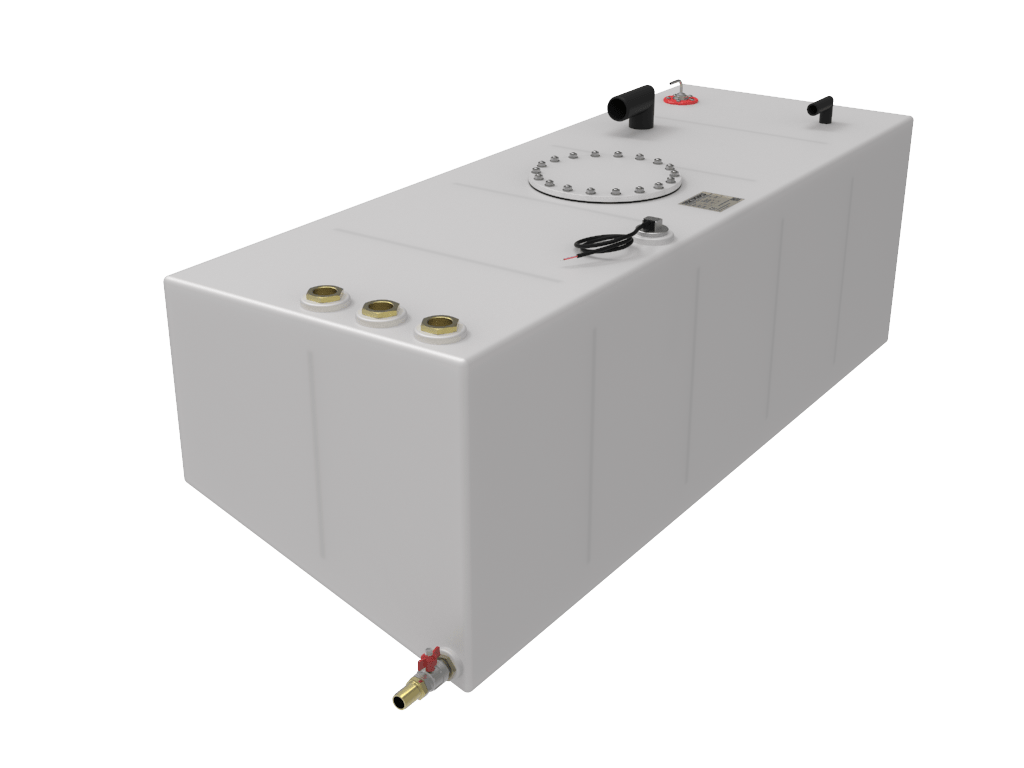

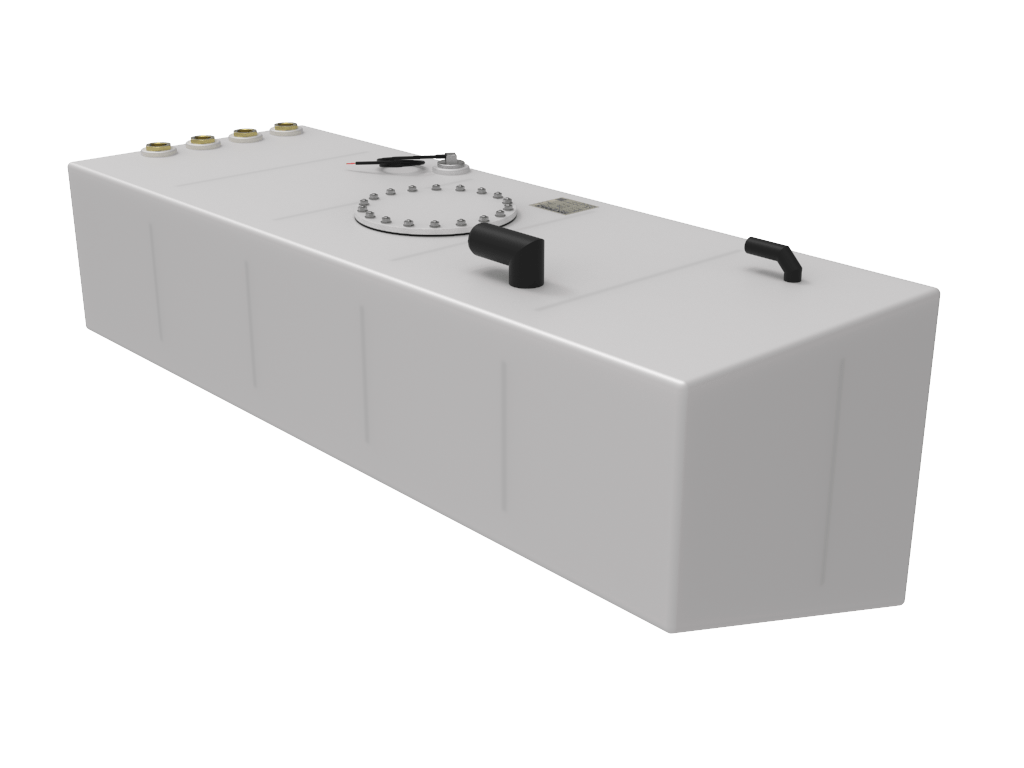

Princess 330 Starboard Diesel Tank

Replacement Starboard Diesel Tank for Princess 330 Motor Boats.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1580mm
Width: 552mm
Height: 516mm.

Fittings:

1 x 2″ BSP – 50mm Plastic Fabricated Elbow
1 x 1″ BSP – 25mm Plastic Fabricated Elbow
1 x 1″ BSP -25mm Straight Brass Hosetail & Ball Valve
4 x 1 1/4″ – 1″ BSP Reducing Bush
1 x 270 Nuts & Bolts Tek-Tanks Custom Hatch
1 x 1 1/4″ BSP Socket
1 x S3-30 Wema Level Indicator
1 x Analogue Fuel Gauge

Capacity: 330 litres

Position in Boat: Starboard Flybridge

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
