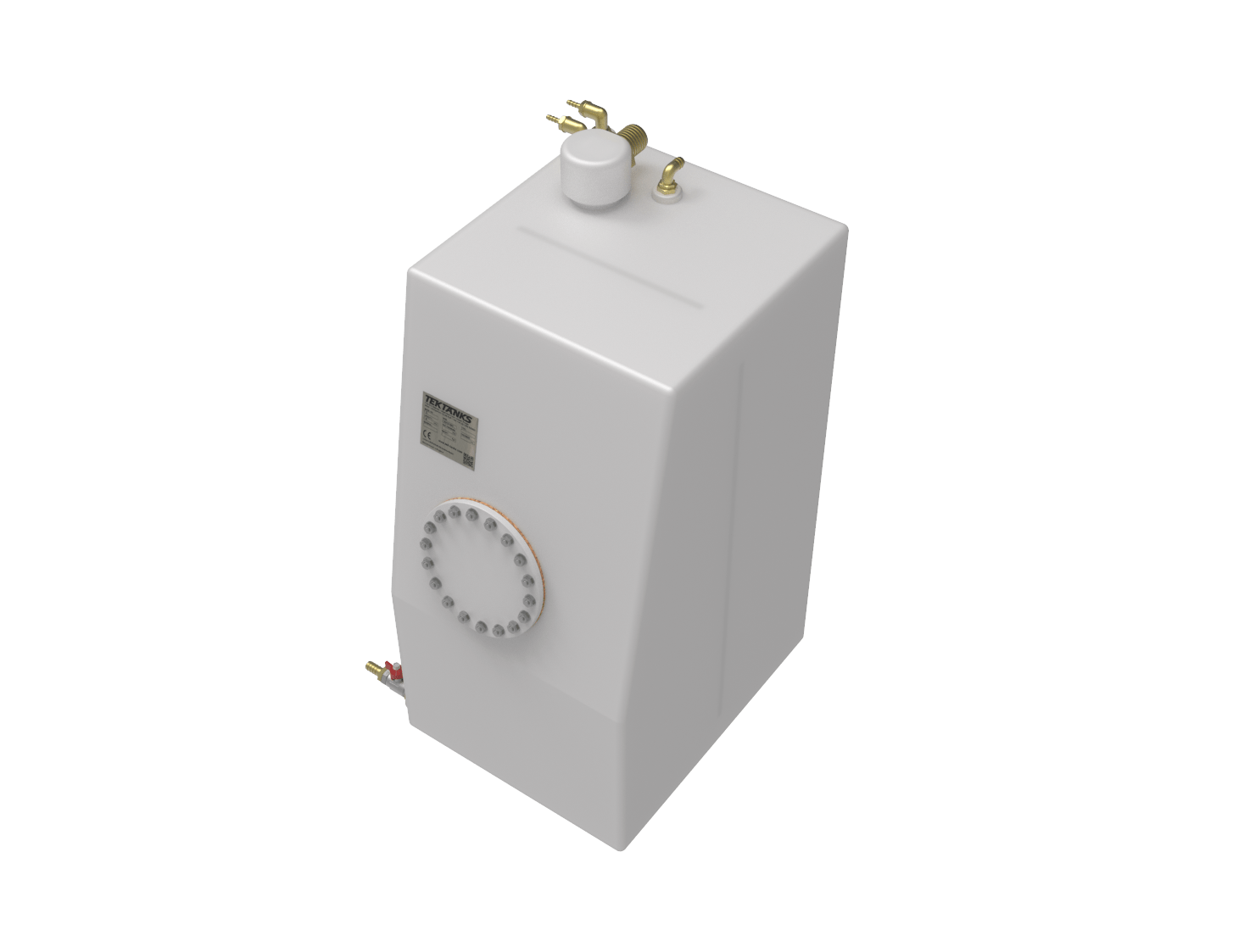

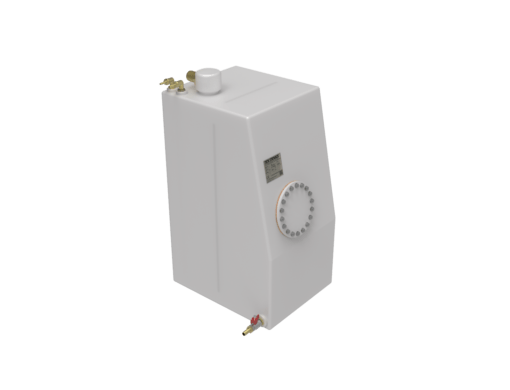

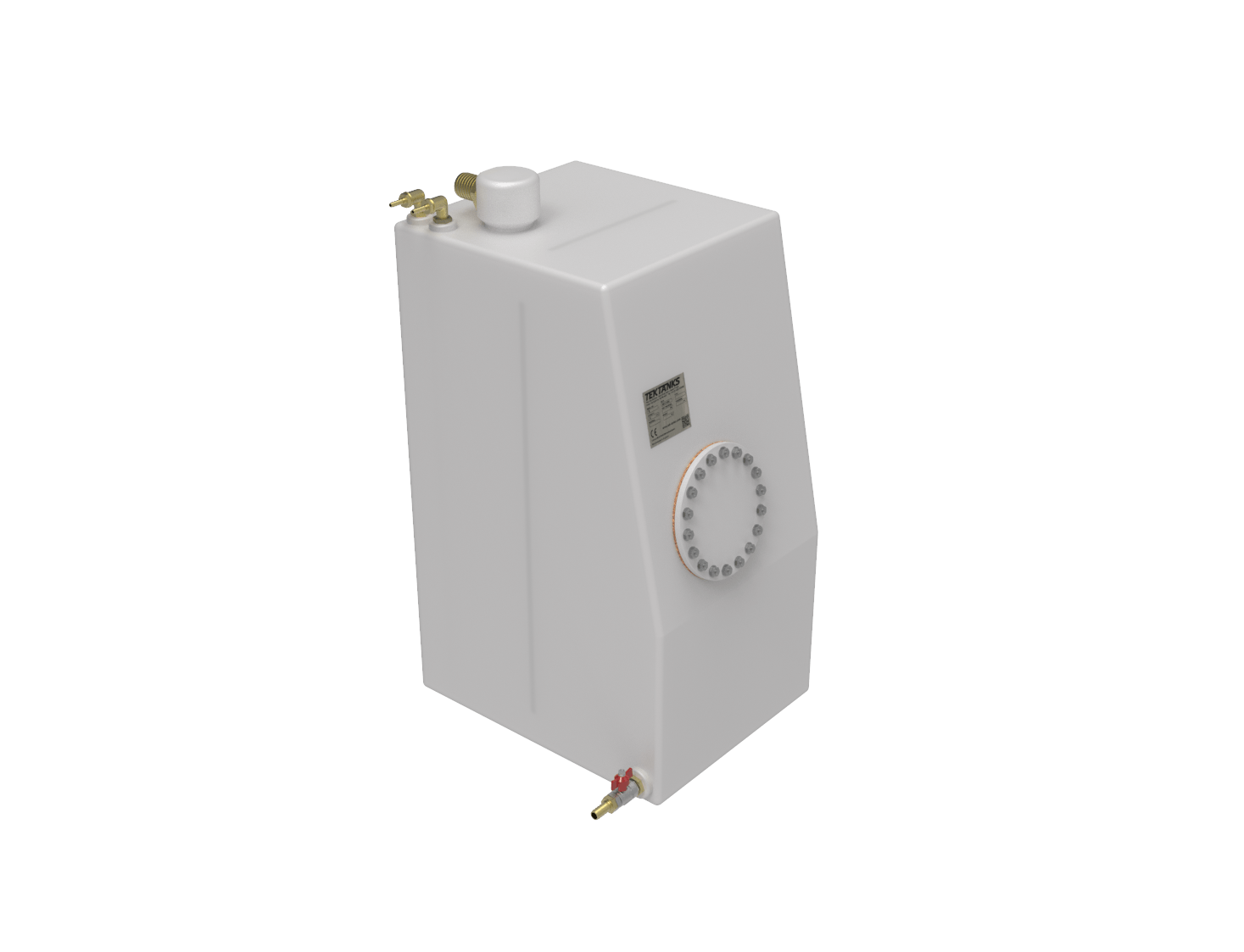

Rimar 36 Diesel Tank

Replacement Diesel Tank for Rimar 36 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 400mm
Width: 500mm
Height: 800mm.

Fittings:

1 x 3/4″ BSP – 16mm Brass Straight Hosetail-Valved
1 x 3/4″ BSP – 16mm Brass Elbow Hosetail
2 x 5/16″ BSP- 8mm Brass Elbow Hosetail
1 x Copper Dip Pipe
1 x 38mm Fixed Elbow Brass Hosetail
1 x Hatch Plate

Capacity: 130 litres

Position in Boat: Behind Companion Way

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
