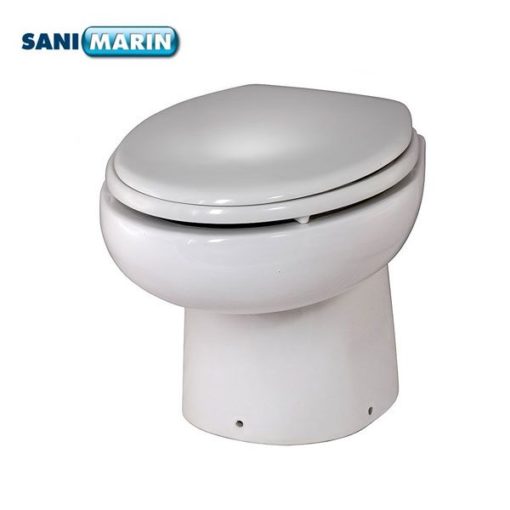

SaniMarin SN31 Comfort Electric Toilet

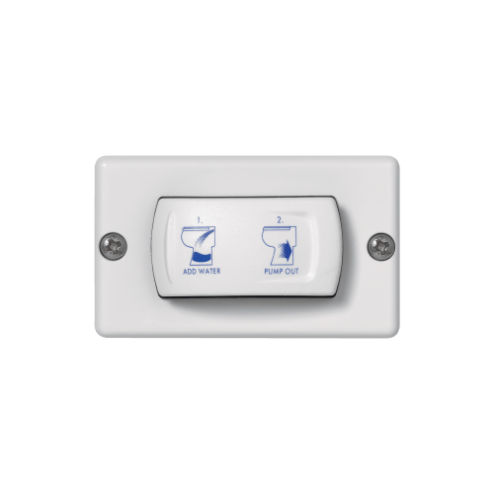

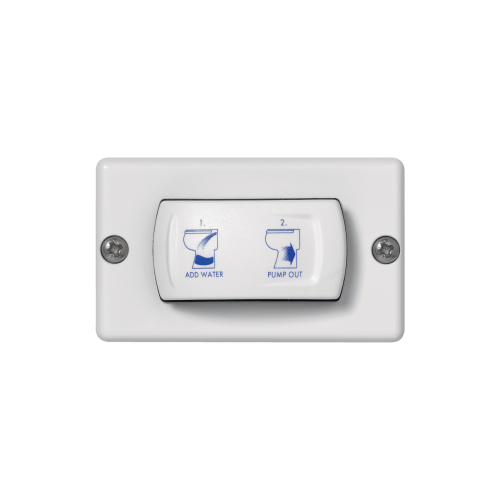

This is the COMFORT version of the SN31 and provides an excellent alternative to toilets with manual pumps. It’s key features are simplicity and reliability. The flushing mechanism on this model is operated via a two-position rocker switch to rinse the bowl or to evacuate the bowl, giving the user full manual control.

No other macerator pump achieves the Sanimarin Comfort performance while operating in virtual silence.

The result is a “Comfortable” on-board facility at a very reasonable cost.

NOTE: Sea water flushing requires and additional raw water pressure pump. Tek Tanks recommend the Par Max 2.9 pump.

Water Consumption 1.2 to 2.2 litres
Water Pressure 20 – 45 PSI
Water connection 3/4″ BSP
Waste Outlet 1″ – 1 1/2″ (25 to 38mm)
Electric consumption 12 volt 21 amps – 24 volt 11 amps
Start up surge 12 volt  133 amps – 24 volt 69 amps
12 volt motor 260 watts
24 volt motor 260 watts

A = 350mm (13 3/4″)
B = 250mm (10″)
C = 420mm (16 1/2″)
D = 240mm 9( 1/2″)
E = 370mm (14 1/2″)
