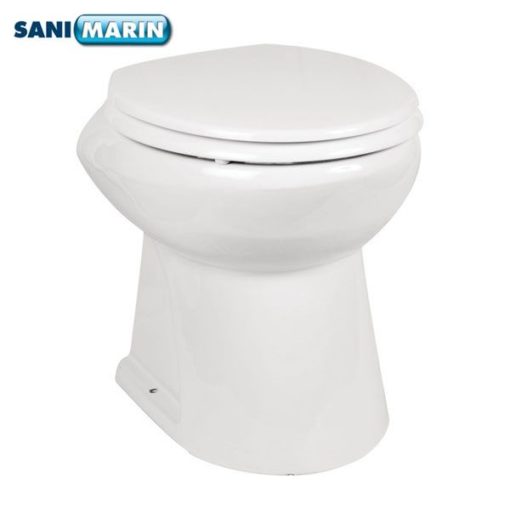

SaniMarin SN35 Electric Toilet

With its profiled lines, the SaniMarin 35 adapts to the hull’s shape. Providing an ideal compromise between comfort and practicality compact in depth for those confined bathroom spaces. Quiet and effective.
Discharge is through conventional 1” – 1½” hose. Exceptionally easy to install with fresh water for flushing supplied by connection into the boat’s water pressure system.
Will discharge to a higher head than most other toilets.

NOTE: Sea water flushing requires and additional raw water pressure pump. Tek Tanks recommend the Par Max 3 pump.

• Dual Flush Operation 1.2 Litre (Econo-flush) 2.2 Litres (Normal flush)
• Minimal Routine Maintenance
• Easy to Clean
• Very Quiet
• 2 Year Guarantee

Water Pressure 20 – 45 PSI
Water connection 3/4″ BSP
Waste Outlet 1″ or 1 1/2″ (25mm or 38mm)
Electric Consumption 12 volt 20 amps – 24 volt 10 amps
Start up surge 12 volt 133 amps – 24 volt 69 amps
12 volt motor 260 Watts
24 volt motor 260 Watts

A = 440mm (17 1/4″)
B = 370mm (14 1/2″)
C = 465mm (18 1/4″)
D  = 375mm (14 3/4″)
E  = 300mm (11 3/4″)
F = 300mm (11 3/4″)
