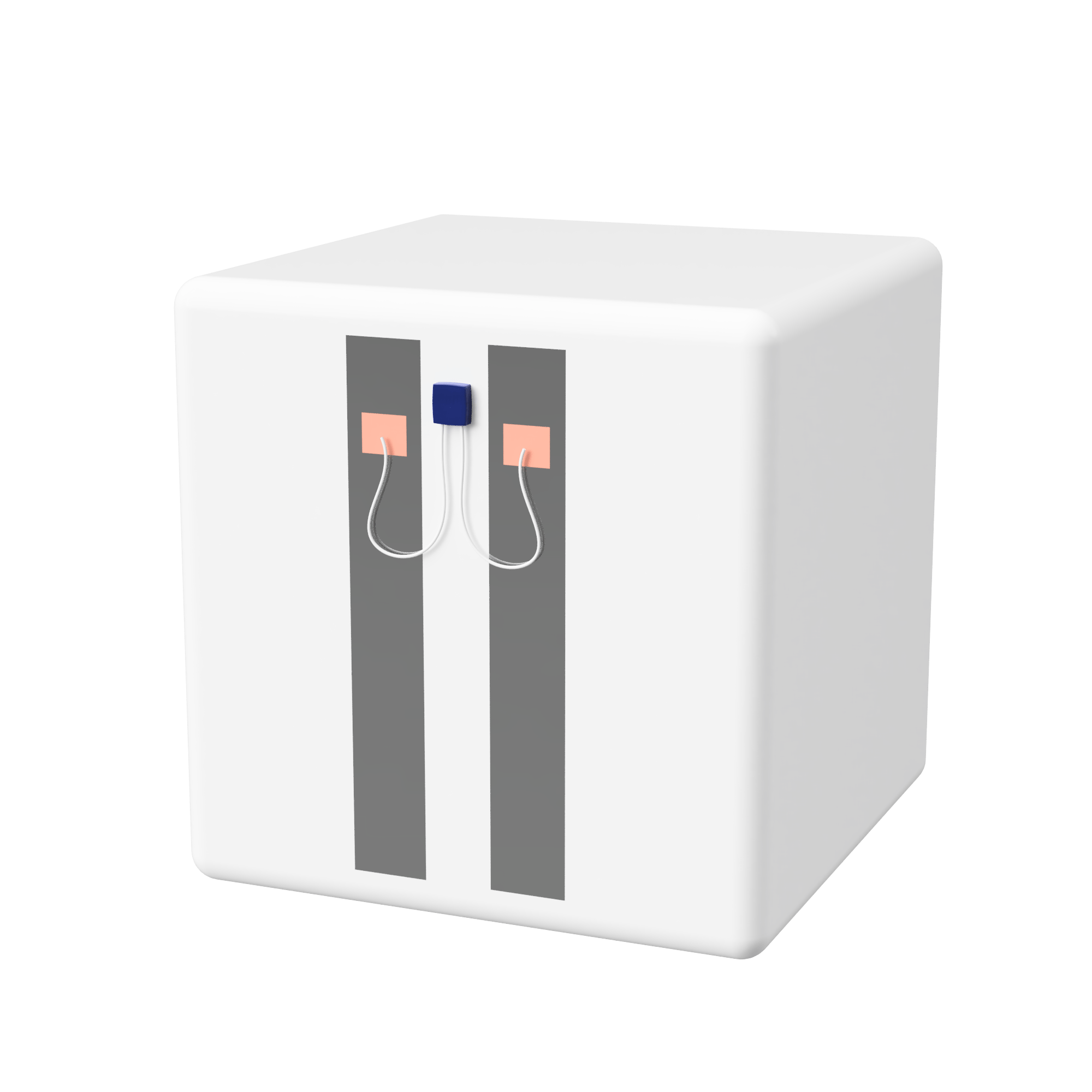

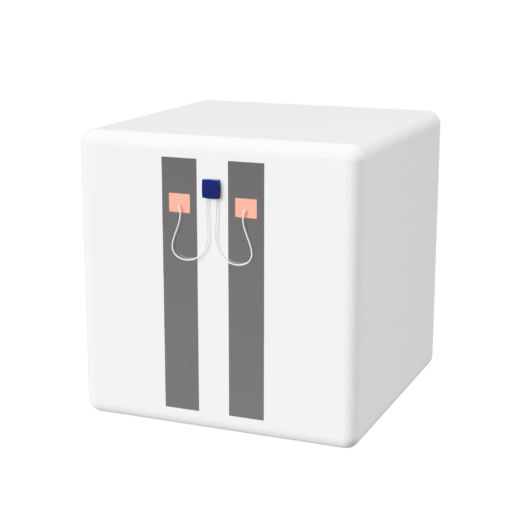

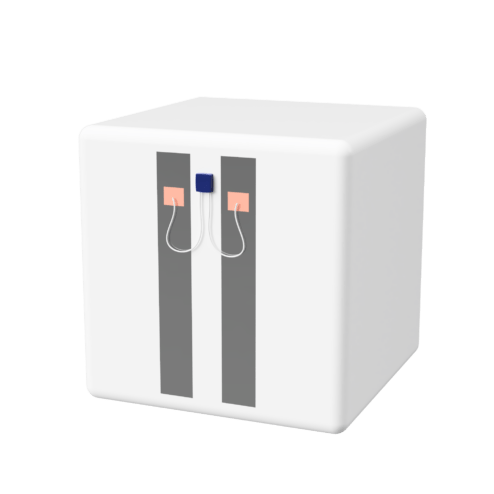

SCAD External Sensor

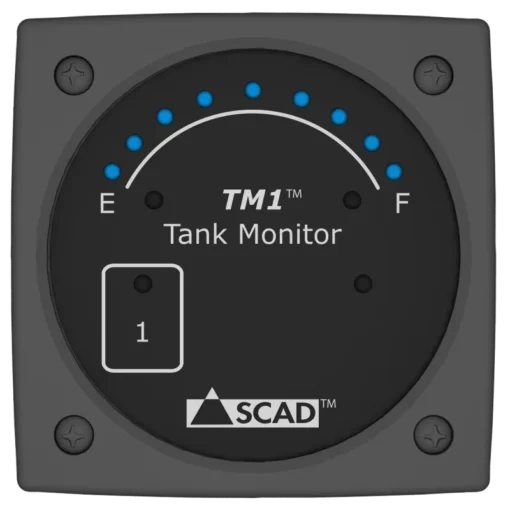

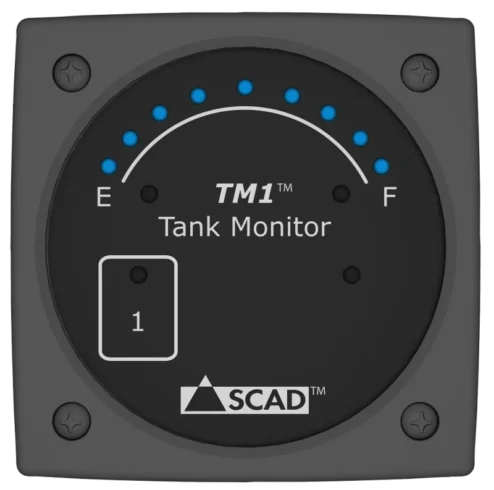

    SCAD TM1 Gauge

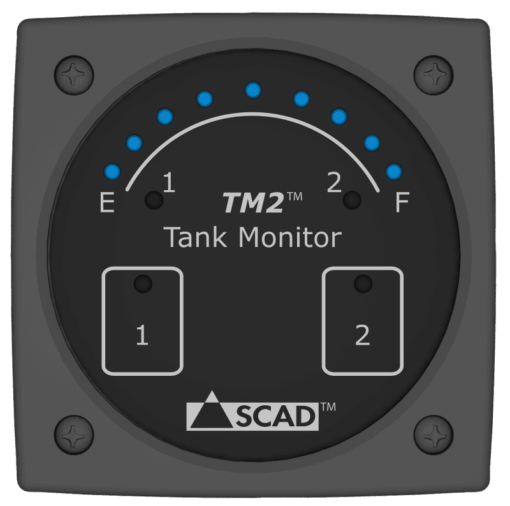

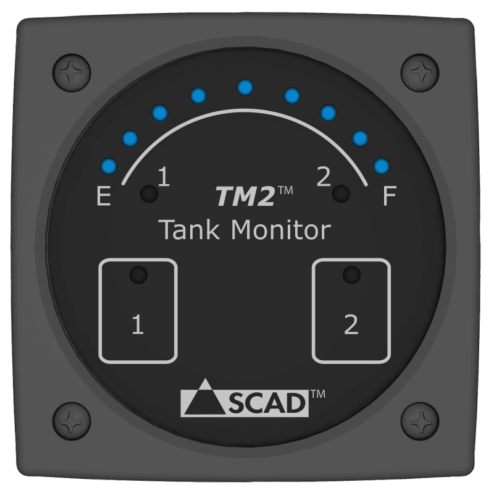

    SCAD TM2 Gauge

    SCAD TM1 and TM2 Non Invasive Foil Type Sensor

    £125.22 – £388.08 Inc VAT

    SCAD Logo

    The SCAD TM1 and TM2 are an easy to install solution for monitoring the liquid level in up to two tanks up to 760mm (30″) tall by simply touching a pad.

    For use with Water, Grey Water and Waste Tanks



    Documentation

    SKU: N/A Category:

    The SCAD TM1 and TM2 are an easy to install and cost effective solution for monitoring the liquid level in up to two tanks up to 760mm (30″) tall by simply touching a pad. The system uses SCAD’s external stick-on level sensors that cannot get fouled. The monitor automatically checks and alerts when liquid levels are critical and provides external alert power.





    Features

    • Monitor one (model TM1) or two (model TM2) water, grey water or holding tank level
    • Easy to install sensors adhere to the outside of plastic and fiberglass tanks and cannot foul (for water and waste)
    • Touch controls. No mechanical button to fail
    • Compatible with fuel float sensors
    • Compact surface mount size (only 1/2″ hole required for wires)
    • Continuous read function provides handsfree monitoring
    • Optional internal sensor available for metal tanks
    • Visual alarm for empty or full conditions
    • Extermal alarm control wire
    • Accomodates all tank shapes

    Benefits

    • Easy to install, easy to operate, reliable and cost effective solution for monitoring tank levels
    • External sensor eliminates fouling
    • Tank level can be continuously viewed while filling or emptying a tank
    • Powers external devices during alert conditions
    • Small surface mount foot print saves space
    • Can be used with a variety of sensors

    Specifications

    • Power: 12 and 24 volts DC
    • Gauge Size: 2.2 x 2.2 x 0.3 inches (56 x 56 x 7.6 mm)
    • Sensor Type: SCAD monitors are compatible with SCAD external sensors and with 240 to 33 Ohm and 10 to 180 Ohm float sensors commonly used for fuel
    • Alarm: Visual alarm on empty or full, or no alarm. Power wire that provides 1 Amp at battery voltage can be set to energize on alarm condition.

    TM1 and TM2 Software Setup Video

    Troubleshooting

    Please follow this link for a comprehensive Troubleshooting Guide.

    Includes wiring troubleshooting, sensor output voltages, FAQ’s and much more!

    Weight N/A
    Select Model

    TM1 Single Tank, TM2 Two Tanks, External Sensor Kit Only
