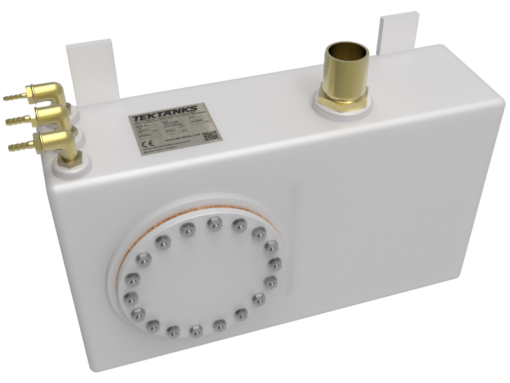

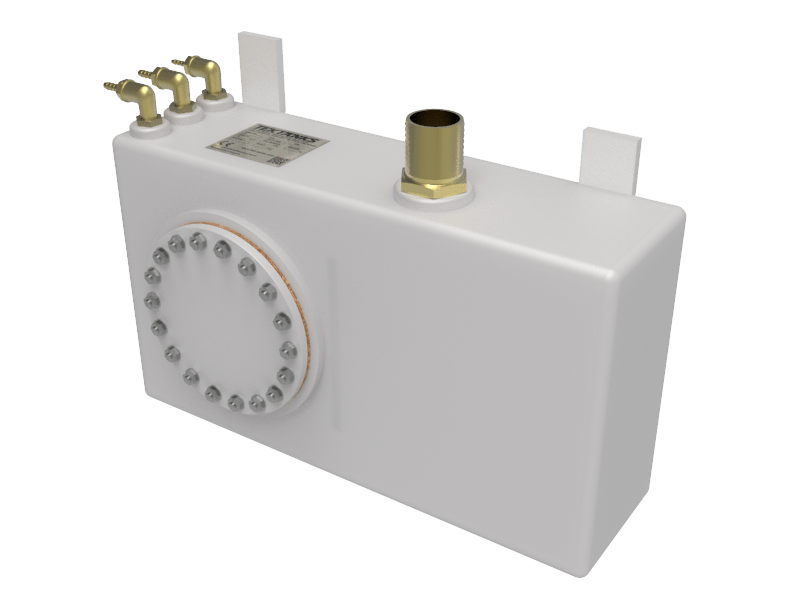

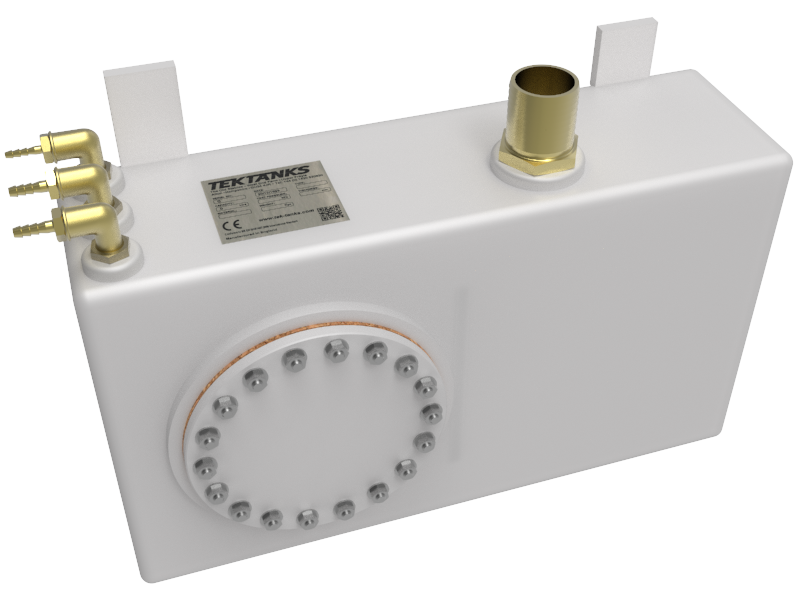

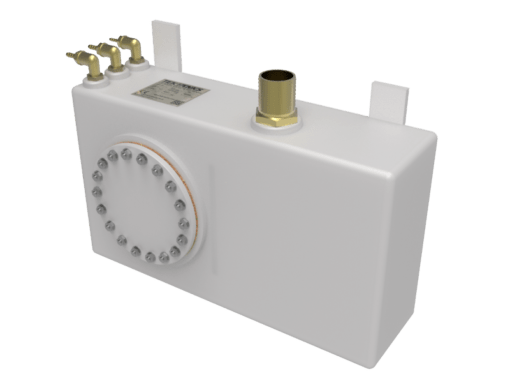

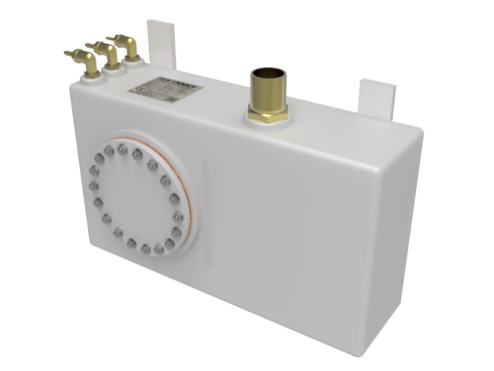

Seamaster Sailer 23 Diesel Tank

Replacement Plastic Diesel Tank for Seamaster Sailer 23 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 537mm
Width: 155mm
Height: 308mm

Fittings:

1 x 1 3/4″ BSP – 45mm Brass Straight Hosetail
1 x Tek-Tanks Custom Nuts & Bolts Inspection hatch (270mm O.D.)
1 x 1/4″ BSP – 6mm Brass Elbow Hosetail
2 x 5/16″BSP- 8mm Brass Elbow Hosetail
1 x Copper Dip Pipe
2 x Undrilled Fixing Flanges

Capacity: 19 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
