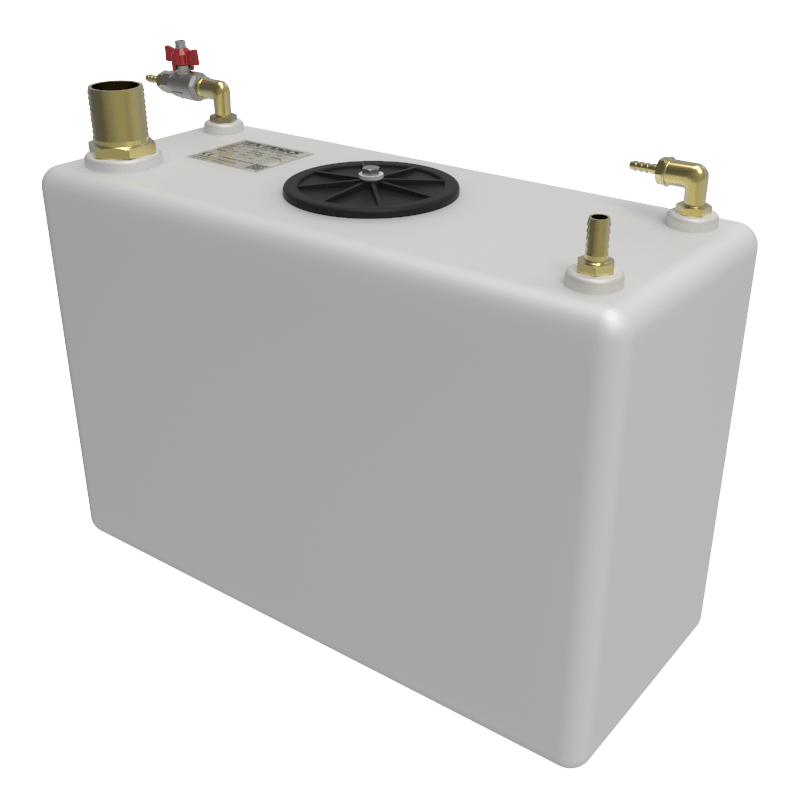

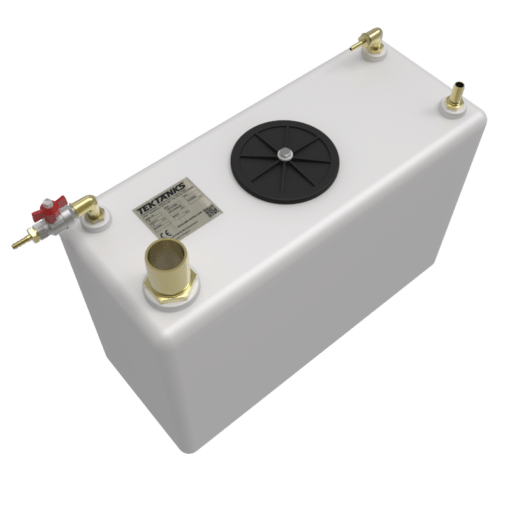

Sigma 33 Diesel Tank

Replacement Plastic Diesel Tank for Sigma 33 Sailing Yachts.

Rotationally Moulded from Medium-Density Polyethylene.

Overall dimensions (without fittings):

Length: 600mm
Width: 250mm
Height: 400mm

Fittings:

1 x 5/8″ BSP – 38mm Brass Straight Hosetail
1 x 1 3/4″ BSP – 45mm Straight Brass Hosetail
2 x 5/16″ BSP – 8mm Brass Elbow Hosetail
1 x Dip Pipe
1 x Standard Wema Inspection Hatch

Capacity: 50 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
