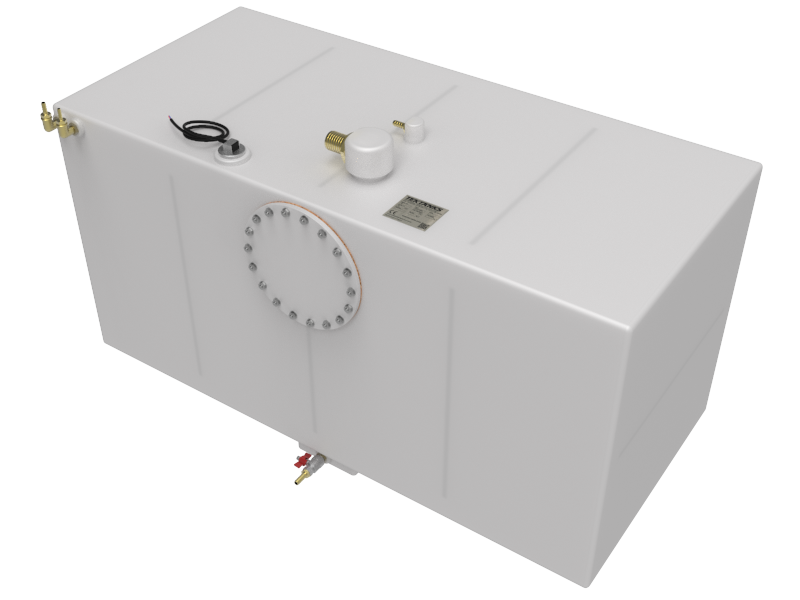

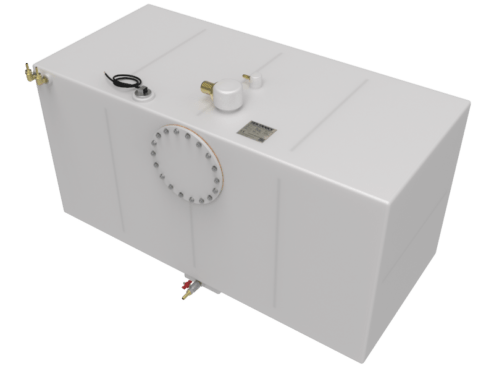

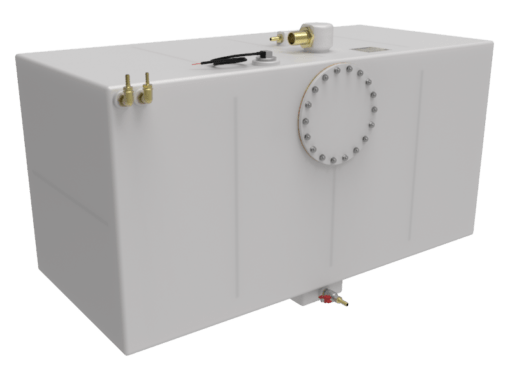

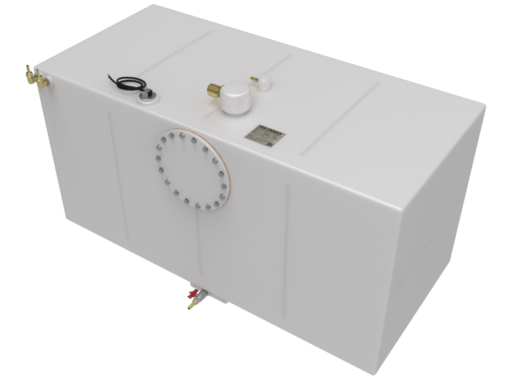

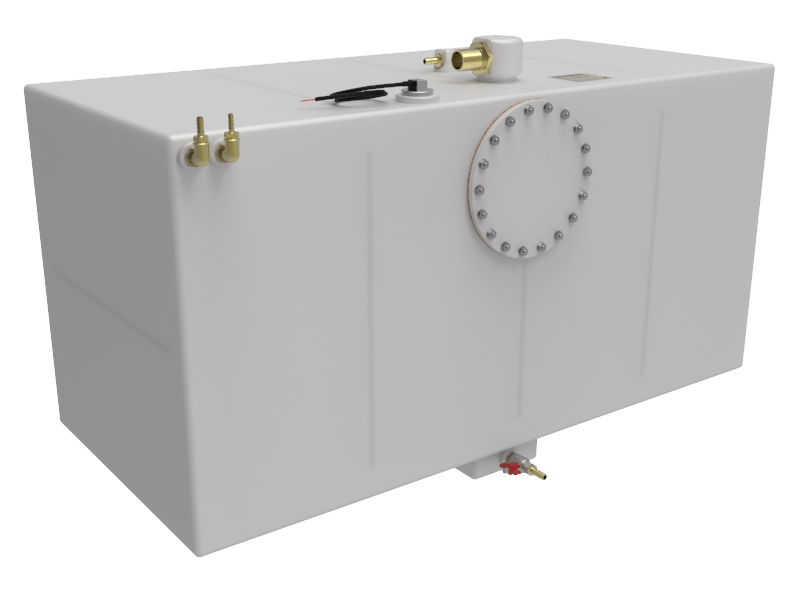

Sigma Cyclone 30 Diesel Tank

Replacement Diesel Plastic Tank for Sigma Cyclone 30 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1300mm
Width: 600mm
Height: 650mm

Fittings:

1 x 2″ BSP – 50mm Brass Straight Hosetail
1 x Tek-Tanks Custom Nuts & Bolts Inspection hatch (270mm O.D.)
1 x 13mm Fixed Elbow Brass Hosetail
1 x 38mm Fixed Brass Elbow Hosetail
2 x 3/8″ BSP – 10mm Brass Elbow Hosetail
1 x Copper Dip Pipe
1 x 1/2″ BSP – 13mm Brass Straight Hosetail (Valved)
1 x 1 1/4″ BSP Socket
1 x Fuel Tank Wema Level Indicator
1 x Analogue Fuel Gauge

Capacity: 458 litres

Position in Boat: Midships

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
