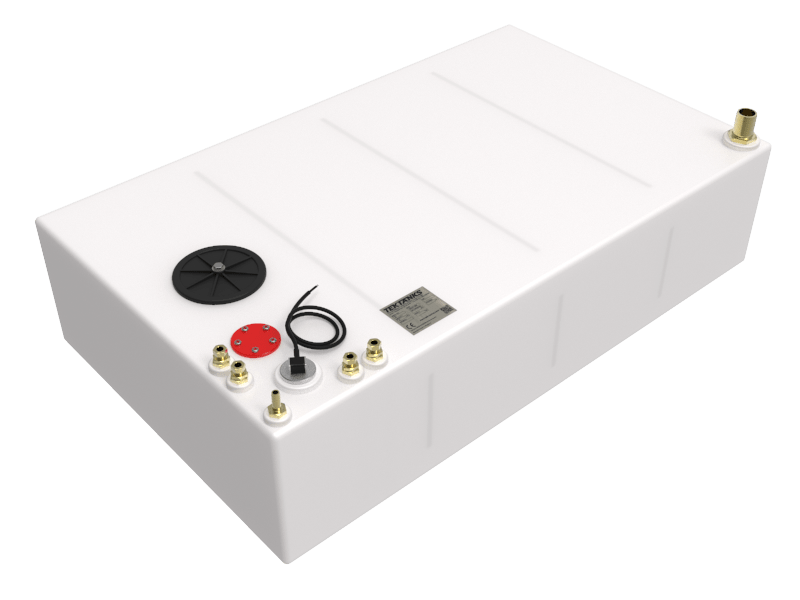

Solaris 11 Diesel Tank

Replacement Diesel Tank for Solaris 11 Sailing Yachts.

Manufactured in the UK from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1170mm
Width: 700mm
Height: 280mm

Fittings:

4 x 3/8″ BSP – 10mm Brass Straight Compression Stud
1 x 1/2″ BSP – 13mm Brass Straight Hosetail
1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x Plate for Heater Feed
2 x Copper Dip Pipe
1 x Wema Inspection Hatch (FLB)
1 x S3 Series Fuel Level Indicator
1 x Analogue Fuel Gauge

Capacity: 198 litres

Position in Boat: Midships

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
