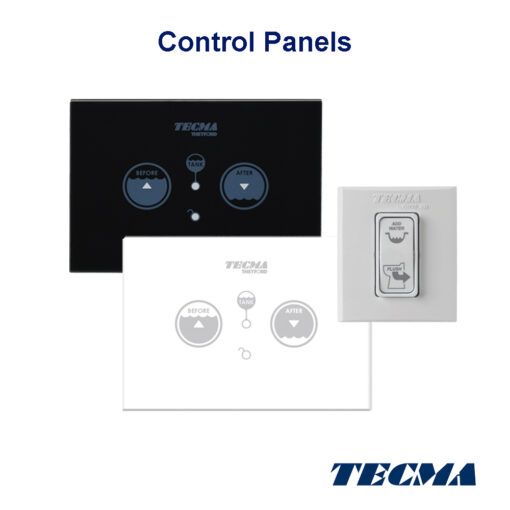

Tecma Toilet Control Panels

There’s a control panel for every bathroom compartment.

Choose the ultimate Hi-tech glass touch-sensitive control with proximity lighting. Or perhaps you would prefer the installation convenience that the All In One switch panel provides.



Let’s take a look at some of the common features

Smart Flush Technology (SFT)

Smart Flush Technology is one of the latest patented innovations of the Tecma product line. This software interacts with the action and performance of the macerator pump and provides many features and benefits.



Smart flush Technology;

• Eliminates air in the pump, which considerably dampens the sound.
• The SFT software minimises water and power consumption.
• Allows the level of flush water to be dialled in.
• Sailing mode provides an almost dry bowl preventing splashes and spills while underway
• When the boat or vehicle is stationary mooring mode allows flush water in the bowl, ready for use.
• Water overfill protection stops overflow situations
• Black water tank level indicator (tank sender req)
• System lock protects against accidental regulation discharge
• Emergency flush

Single or dual-button control

The single-button control is best suited to vessels navigating in calm waters or off-grid static installations. They are perfect for narrowboats, river cruisers, static houseboats, large RVs and fixed caravans.  A single-button control panel ends its cycle with a wet bowl just like a domestic toilet ready for the next user. (mooring mode)

A dual-button control leaves an almost dry bowl after use, preventing spills and splashes while underway (sailing mode). When a user wants to use the toilet, they simply press the Before Use button, and a preset amount of flush water enters the bowl. Press the flush button and the waste is pumped to sea or into a holding tank.

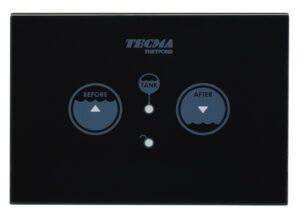

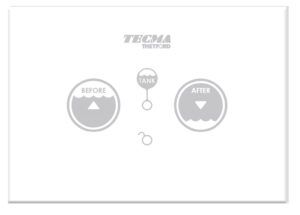

The ultimate Hi-tech glass touch with proximity lighting.

Touch SFT control panel is made of hi-tech glass and comes complete with an LED backlight and proximity sensor.

This model provides owners with;

• Mooring and sailing modes
• Flush water trim
• Overfill protection
• A Tank-level LED indicator (tank sender req)
• Soft blue LED Backlit
• LED light proximity sensor (companion night light)
• Bulkhead-mounted control panel
• Remote control box
• Only available as a 2-button panel
• Compatible with all current TECMA toilets

White Panel SKU:  T-PF.P11TS
Black Panel SKU:  T-PF.P11T2B

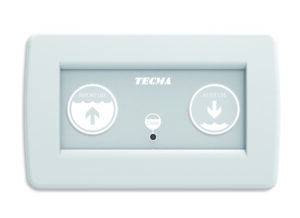

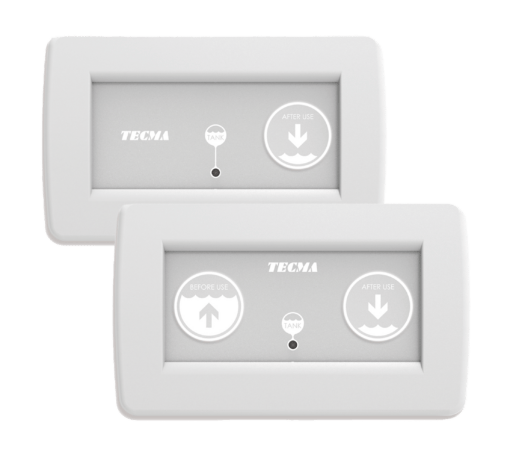

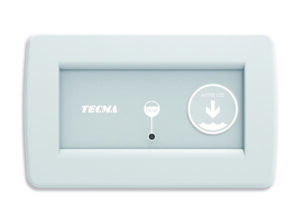

All-in-one SFT plastic 1 & 2 button control panel:

This model provides owners with;

• Single & Dual button panels are available
• Flush water trim
• Overfill protection
• Tank level LED indicator (tank sender req)
• No backlight
• All-in-one bulkhead mounted
• Unit Incorporates the control box
• Compatible with all current TECMA toilets

Single button SKU T-PF.P11/B
Dual button SKU T-PF.P11

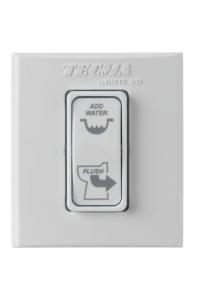

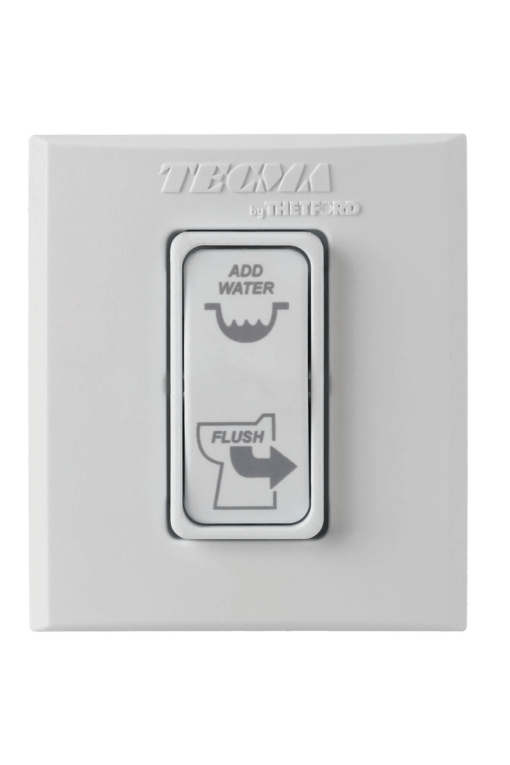

 Eco Rocker Switch

Compatible with the Compass and Nano toilets only
Easy to use, solid rocker switch with manual set up of inlet and outlet water
Reduced power and water consumption.

Separate control box

Rocker Switch SKU T-PF.P128
