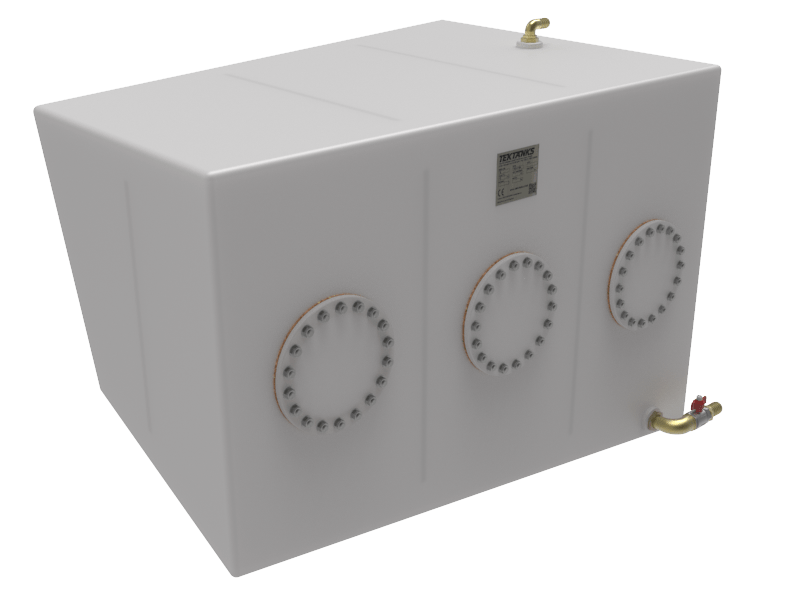

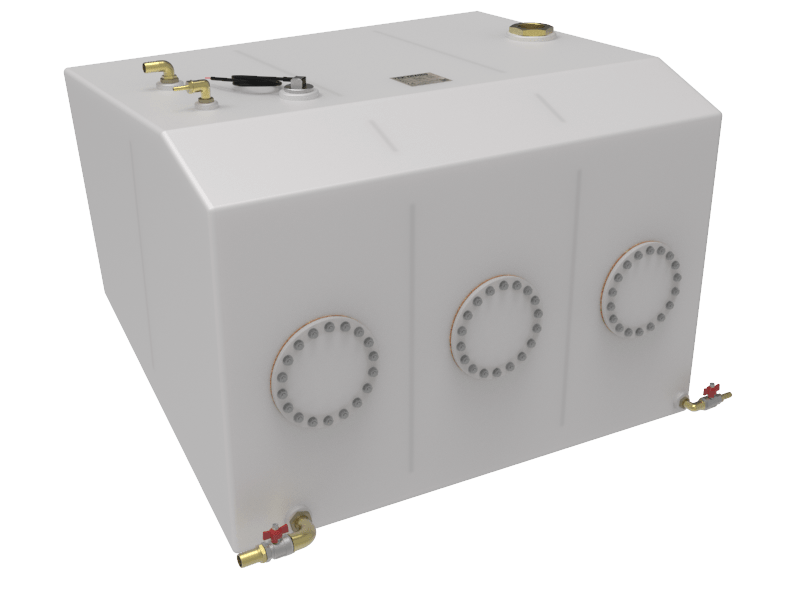

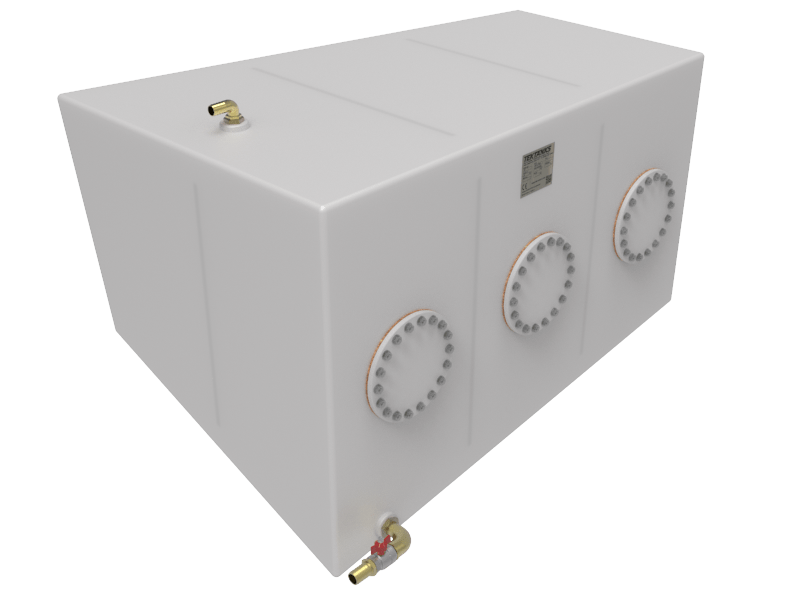

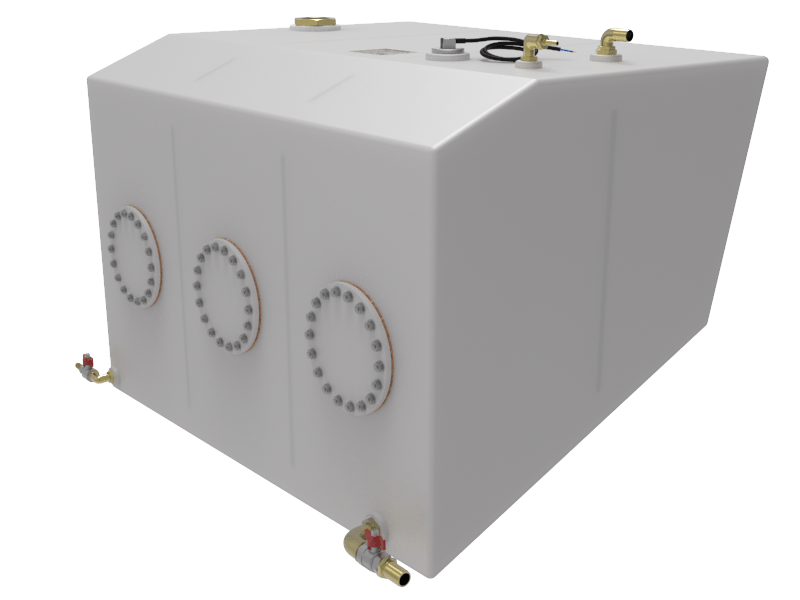

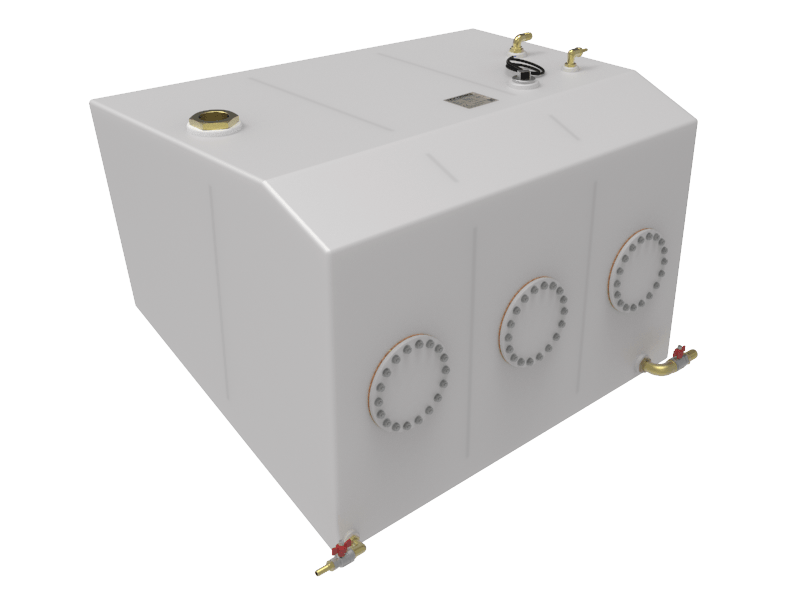

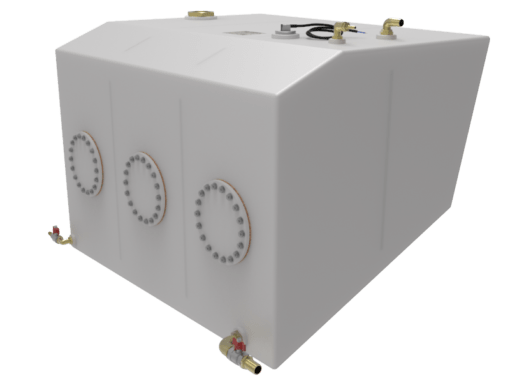

Trader 11 Port Aft Diesel Tank

Replacement Port Aft Diesel Plastic Tank for Trader 11 Motor Boats.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1065mm
Width: 741mm
Height: 831mm

Fittings:

1 x 1″ BSP – 25mm Elbow Brass Hosetail Valved
1 x 1/2″ BSP – 13mm Brass Hosetail Valved
1 x 3/4″ BSP – 19mm Elbow Brass Hosetail
1 x 5/16″ BSP – 8mm Elbow Brass Hosetail
3 x Tek-Tanks Custom Nuts & Bolts Inspection hatch (200mm O.D.)
1 x 1 1/4″ BSP Socket
1 x Fuel Tank Wema Level Indicator
1 x Analogue Fuel Gauge

Capacity: 44 litres

Position in Boat: Port Aft

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
