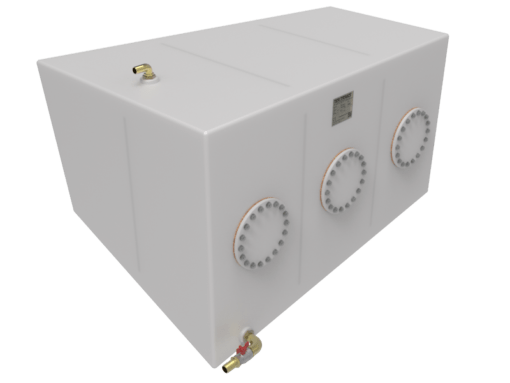

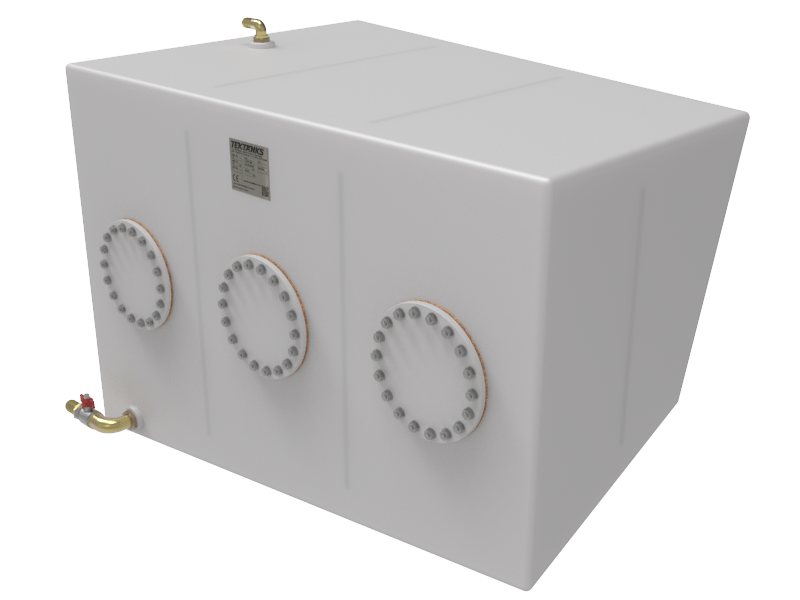

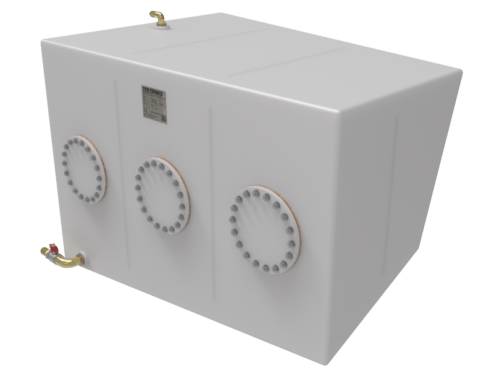

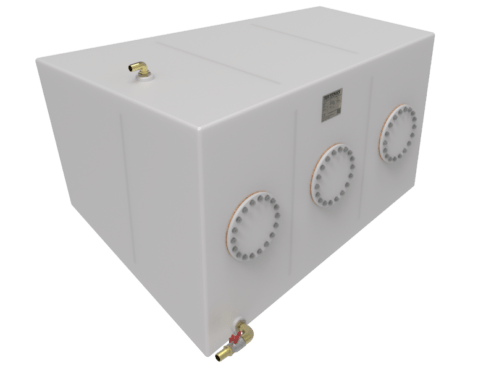

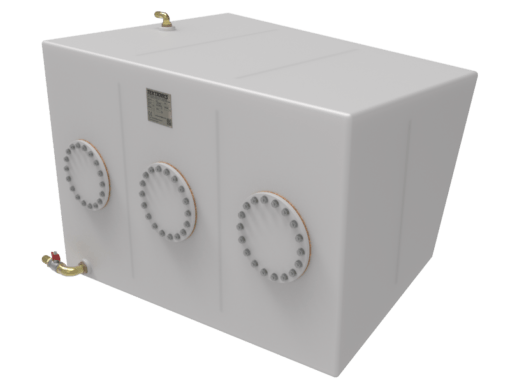

Trader 11 Port Forward Diesel Tank

Replacement Port Forward Diesel Plastic Tank for Trader 11 Motor Boats.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1050mm
Width: 723mm
Height: 715mm

Fittings:

1 x 1″ BSP – 25mm Elbow Brass Hosetail Valved
1 x 3/4″ BSP – 19mm Elbow Brass Hosetail
3 x Tek-Tanks Custom Nuts & Bolts Inspection hatch (200mm O.D.)

Capacity: 280 litres

Position in Boat: Port Forward

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
