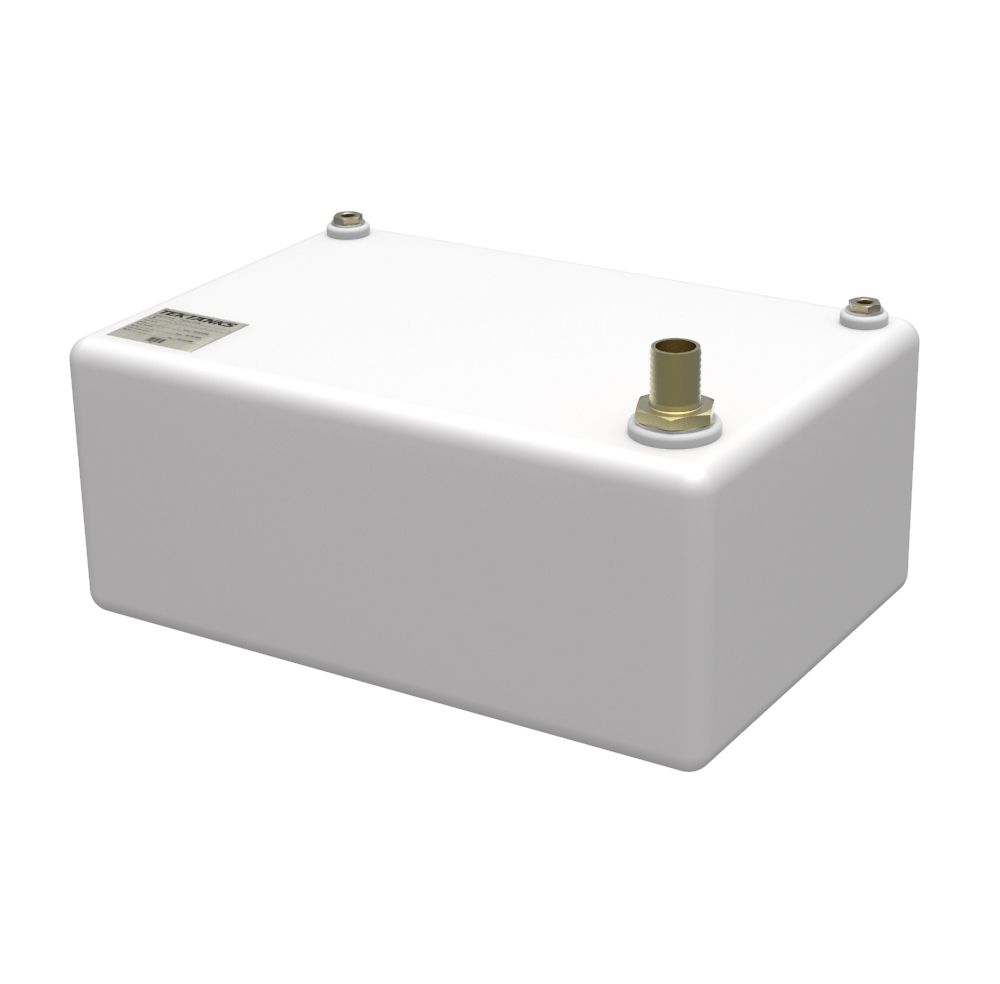

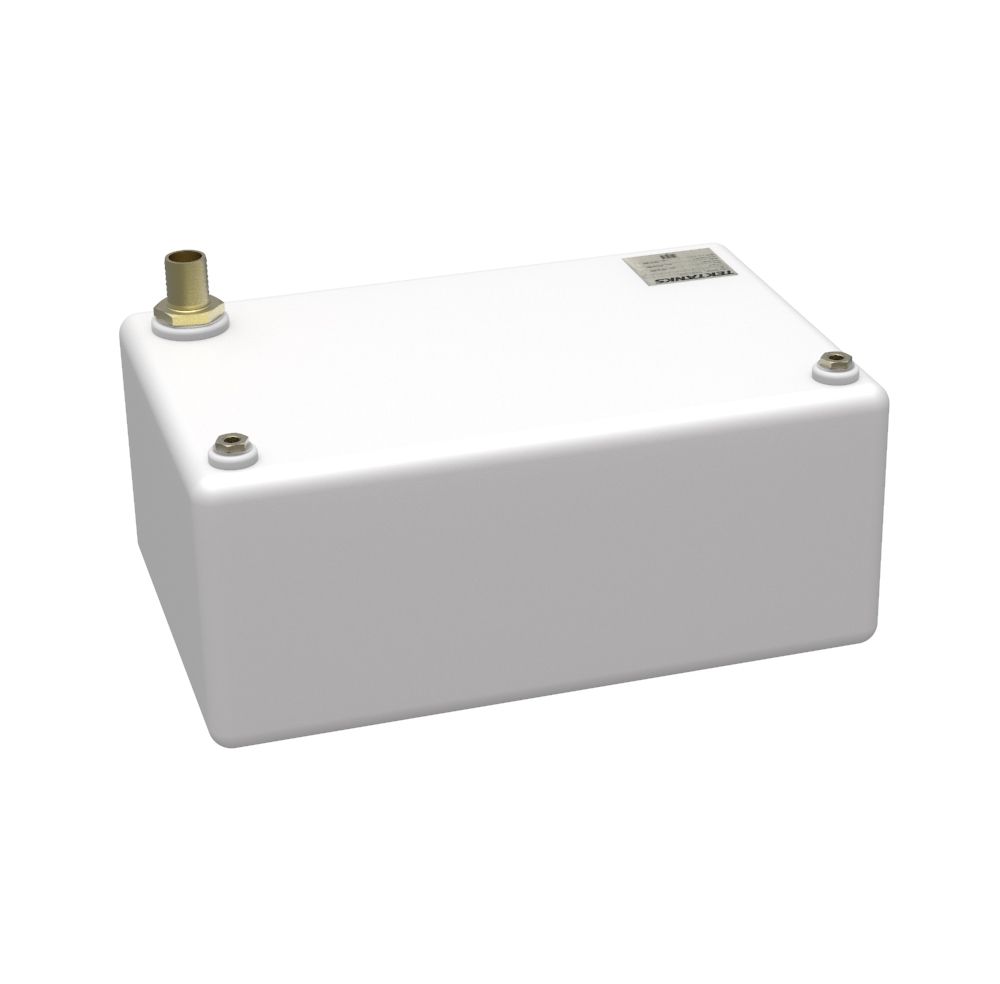

Westerly Griffon Diesel Tank

Westerly Fulmar Diesel Tank. Rotationally Moulded from 10mm Thick Medium Density Polyethylene.

Overall dimensions without fittings:

Length: 600mm
Width: 400mm
Height: 250mm

Fittings:
1 x 1 1/2″ BSP – 38mm Straight Brass Hosetail
2 x 1/2″ BSP –  1/4″ BSP  Reducing Bush
1 x 1/4″ BSP – 6mm Brass Straight Hosetail with Dip Pipe and Tap

Capacity: 51 Litres

Follow the link here to find the blank version of this tank.

Drawings are available at a cost of £75.00 + VAT. This cost is totally refundable if an order is placed for this tank. Please call for more information.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
