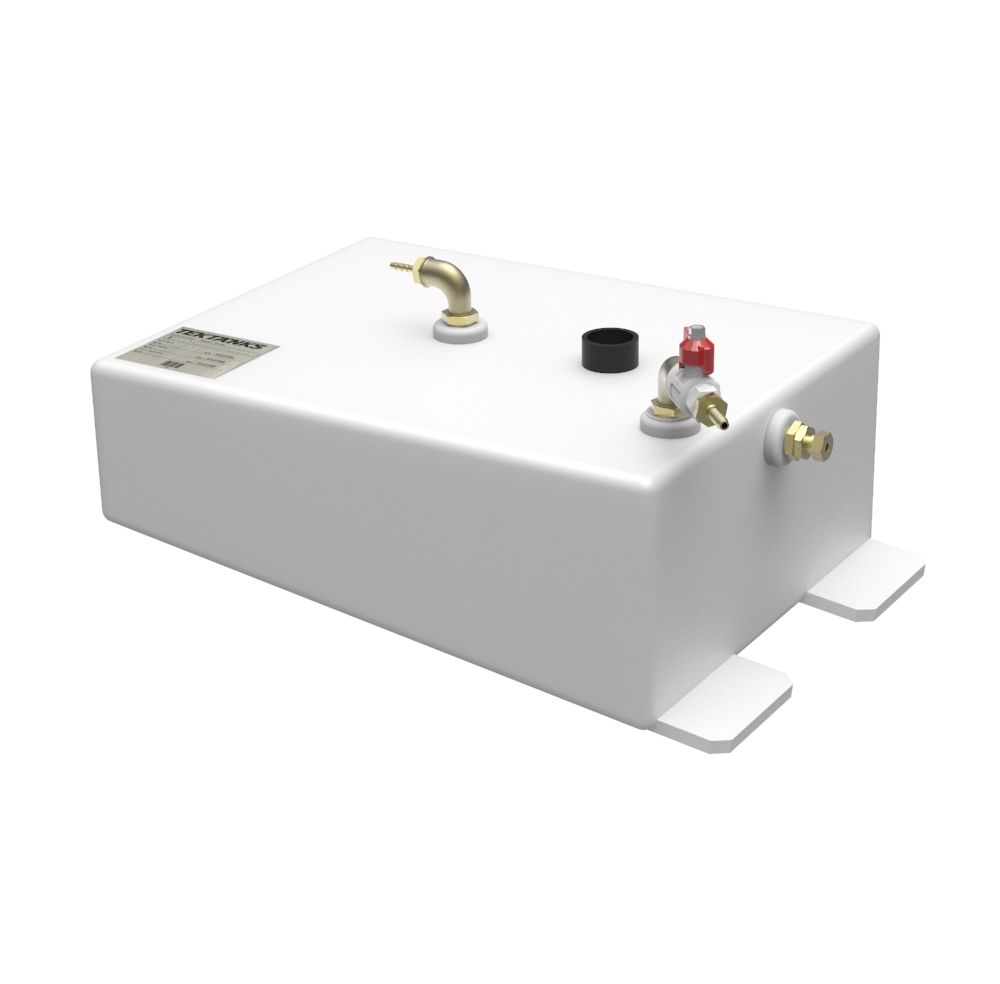

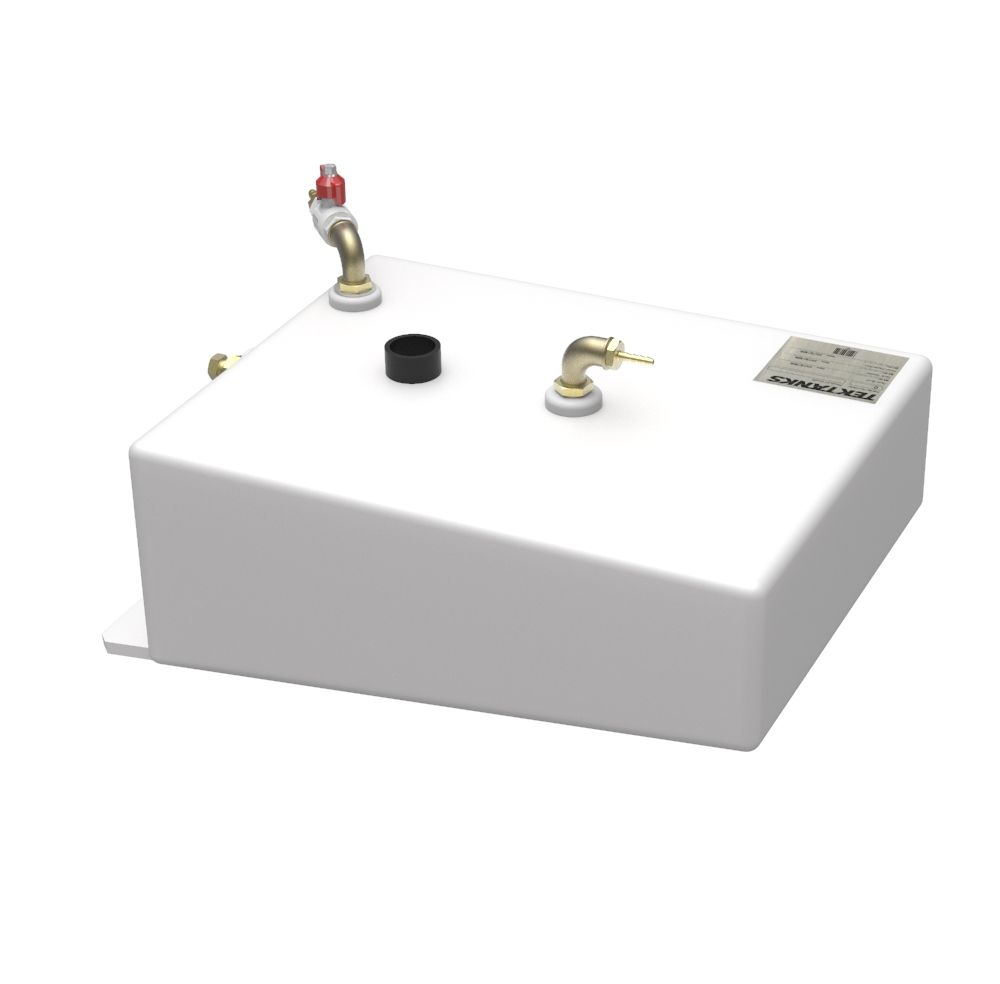

Westerly Pageant Diesel Tank

Westerly Pageant Diesel Tank made from 10mm Natural High Density Polyethylene

Overall dimensions without fittings:

Length: 460mm
Width: 355mm
Height:180 mm

Fittings:

1x 38mm Fabricated Straight Hosetail
1x 1/2″ BSP – 6mm Brass Banjo Hosetail
1x 1-14315 1/4 Banjo
1 x 1-74990 F/F Tap
1 x 1-75990 1/4 Brass Hosetail
1 x 1/2″ BSP  – 3/8″ BSP  Reducer
1 x Copper Dip Pipe
2 x Flanges undrilled

Capacity: 19.5 Litres

Position in boat: Underneath Cockpit Sole

Drawings are available at a cost of £75.00 VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
