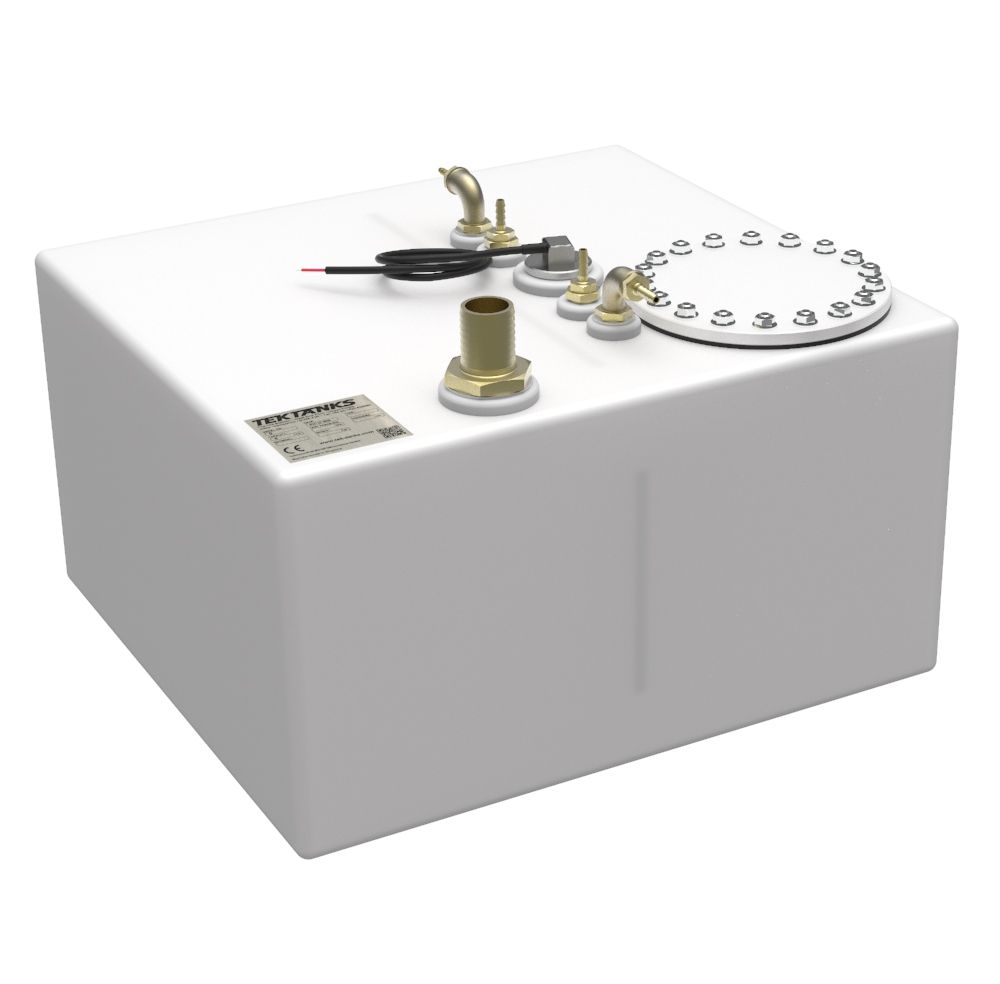

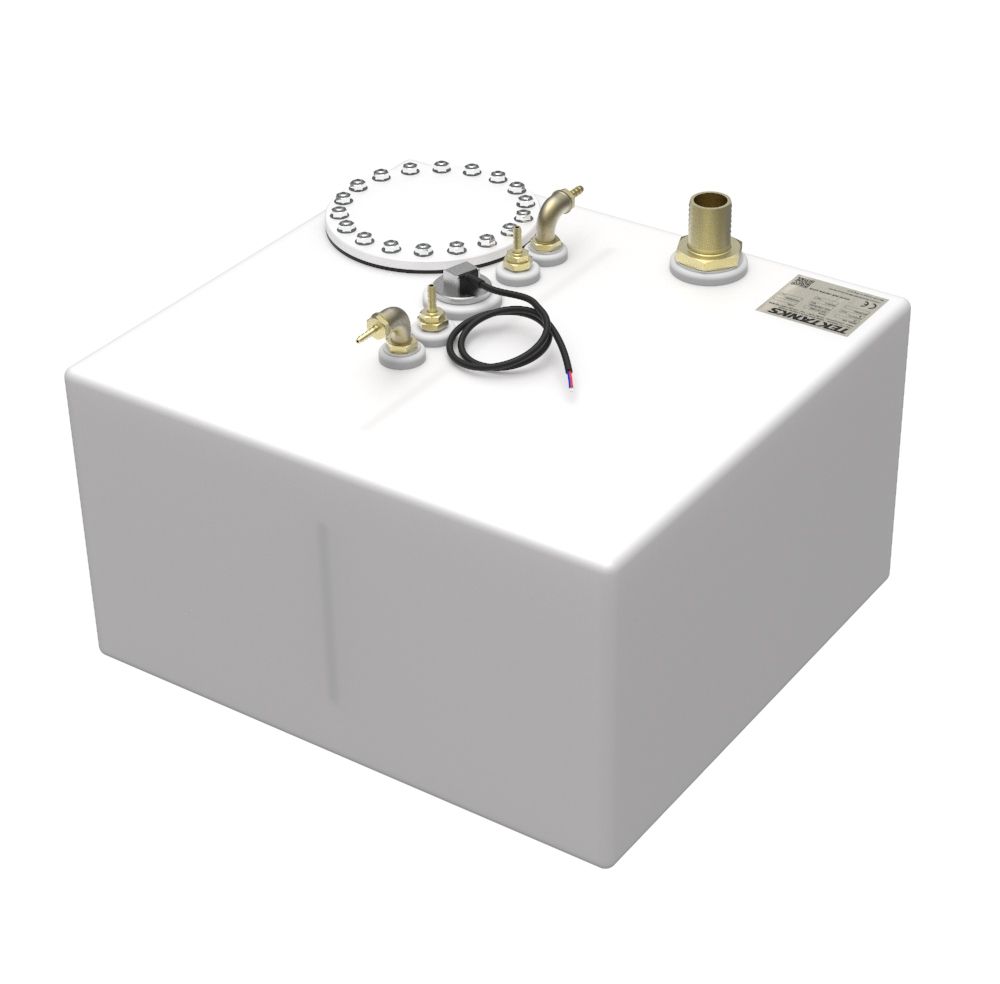

Westerly Pentland Diesel Tank

Westerly Pentland Diesel Tank made from 10mm Natural High Density Polyethylene.

Overall dimensions without fittings:

Length: 550mm
Width: 500mm
Height: 300mm

Fittings:

1 x 1 1/2″ BSP – 38mm Straight Brass Hosetail
2 x 5/16″ BSP – 8mm Straight Brass Hosetail
2 x 5/16″ BSP – 8mm Elbow Brass Hosetail with Copper Dip Pipe
S3-25 Wema Fuel Level Indicator supplied with IPFR Wema Analogue Gauge
1 x 200mm Nuts and Bolts Hatch

Capacity: 70 Litres

Position in boat: Under Cockpit Sole

Drawings are available at a cost of £75.00 + VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
