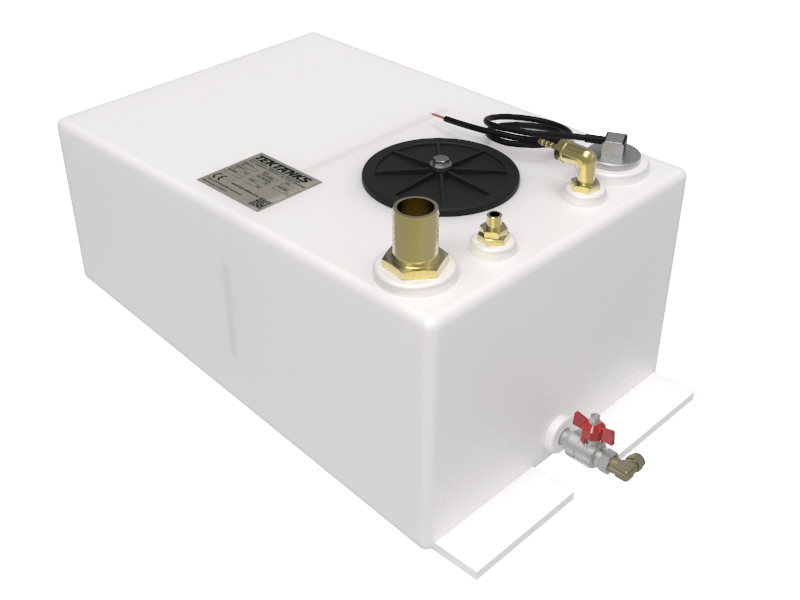

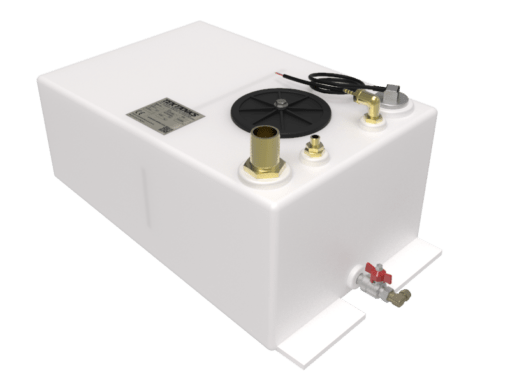

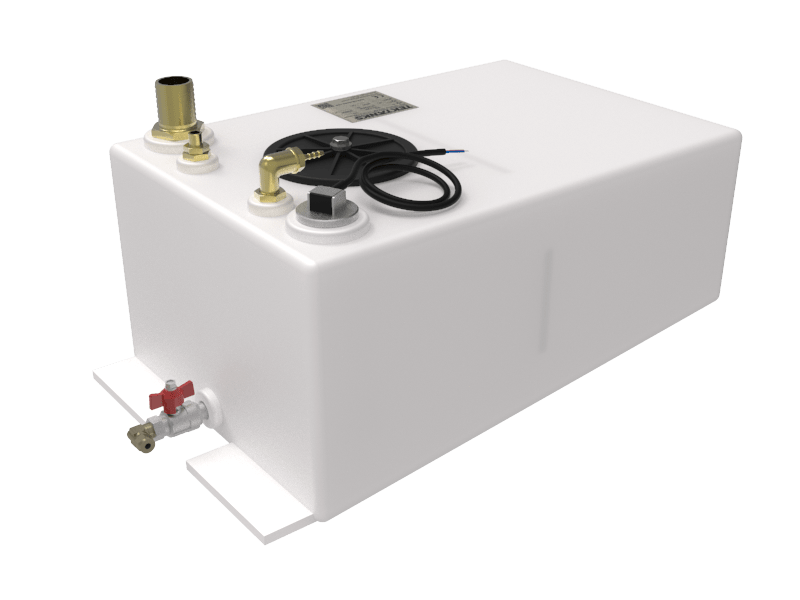

Westerly Tiger Diesel Tank

Replacement Diesel Tank for Westerly Tiger Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 545mm
Width: 370mm
Height: 255mm

Fittings:

1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 1/4″ BSP Male Nipple
1 x 1/4″ BSP – 6mm Brass Elbow Hosetail
1 x 1 1/4″ BSP – 32mm Socket
1 x 1/2″-3/8″ 13-9mm Reducer
1 x FLB Wema Inspection Hatch
1 x 1 1/4″ x 3/8″ BSP Brass Elbow (Valved)
2 x Fixing Flanges (supplied undrilled)

Capacity: 37 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
